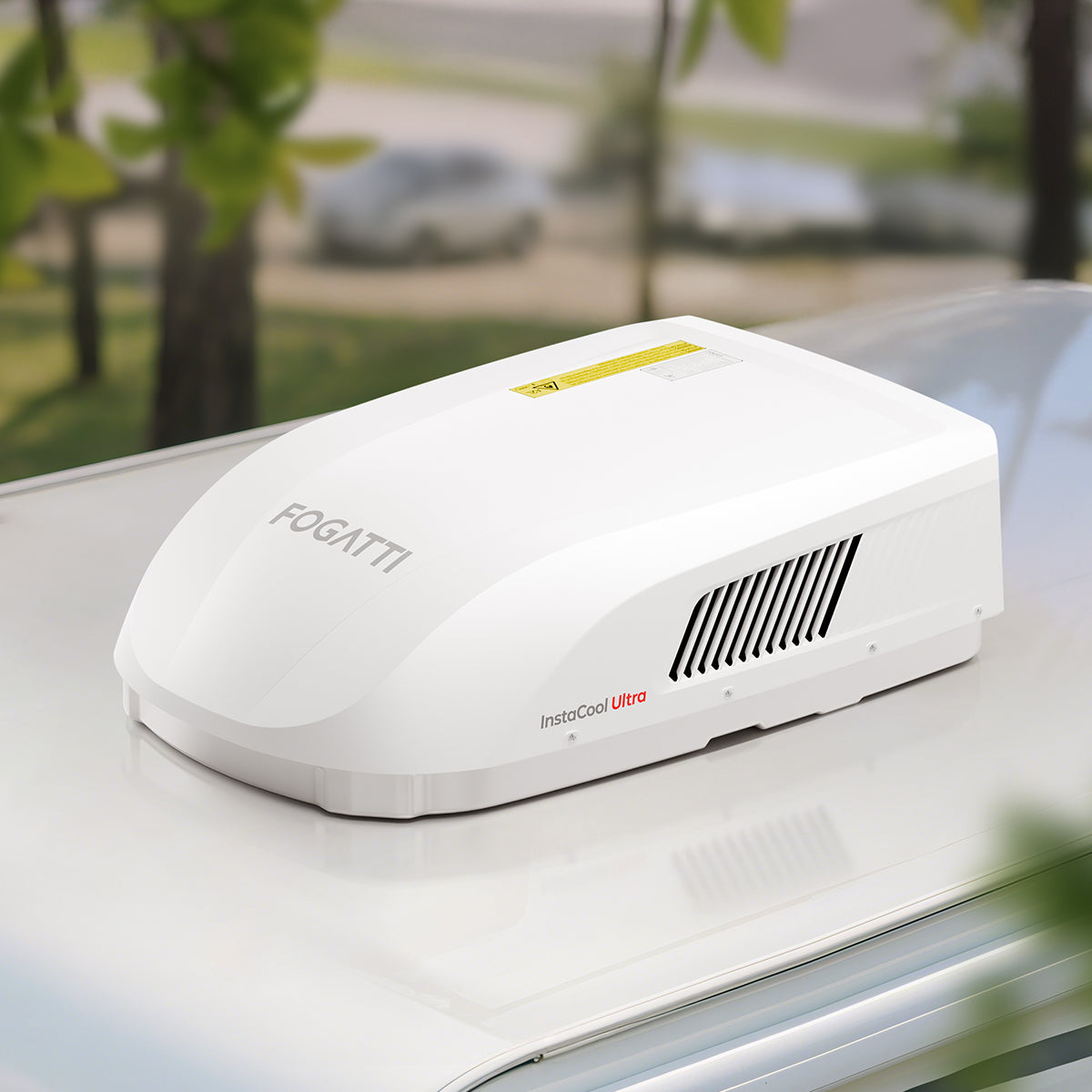

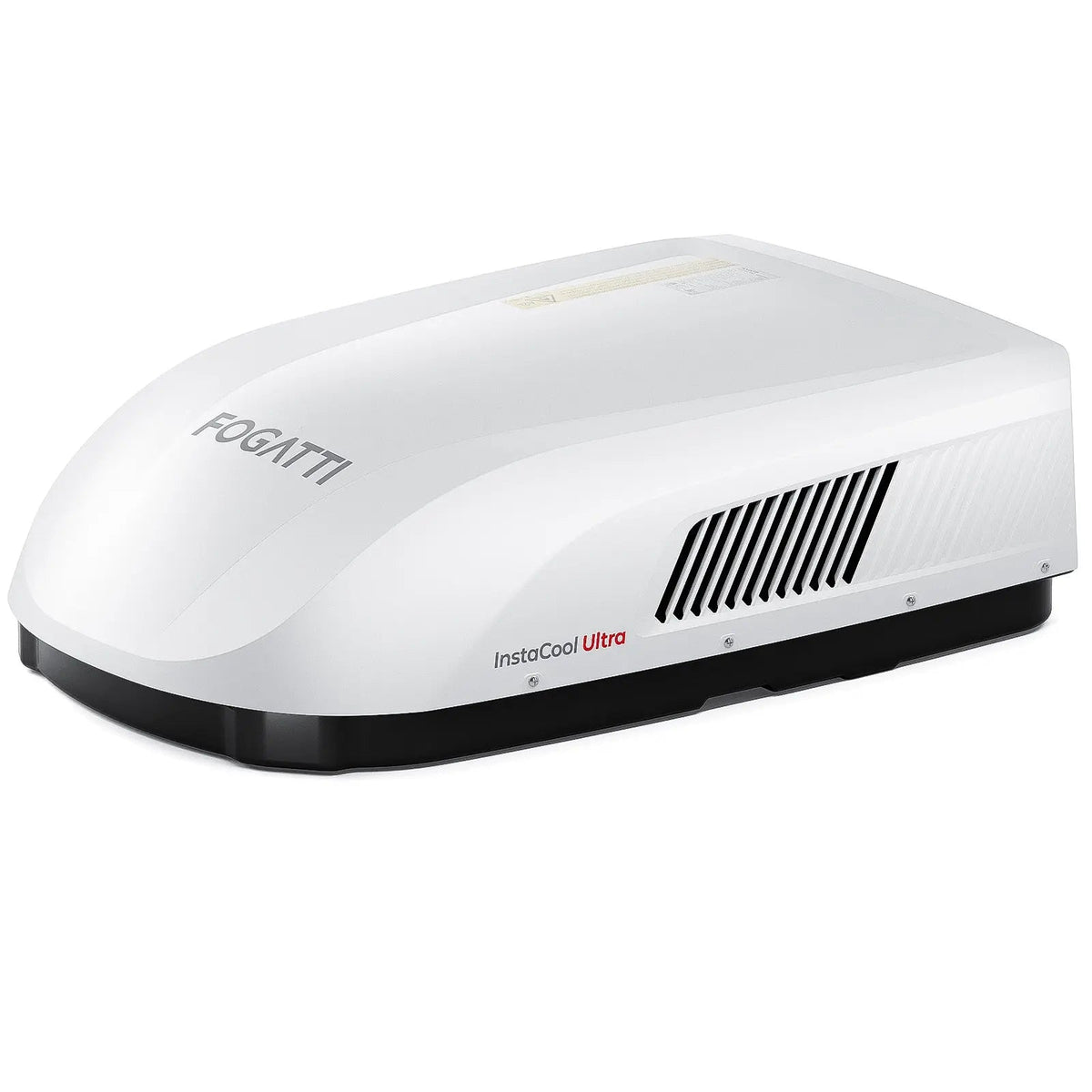

INSTACOOL ULTRA
16K RV Air Conditioner with Heat Pump
$1,299.99
$1,749.99
Save $450.00
Fast cooling with less cabin noise.

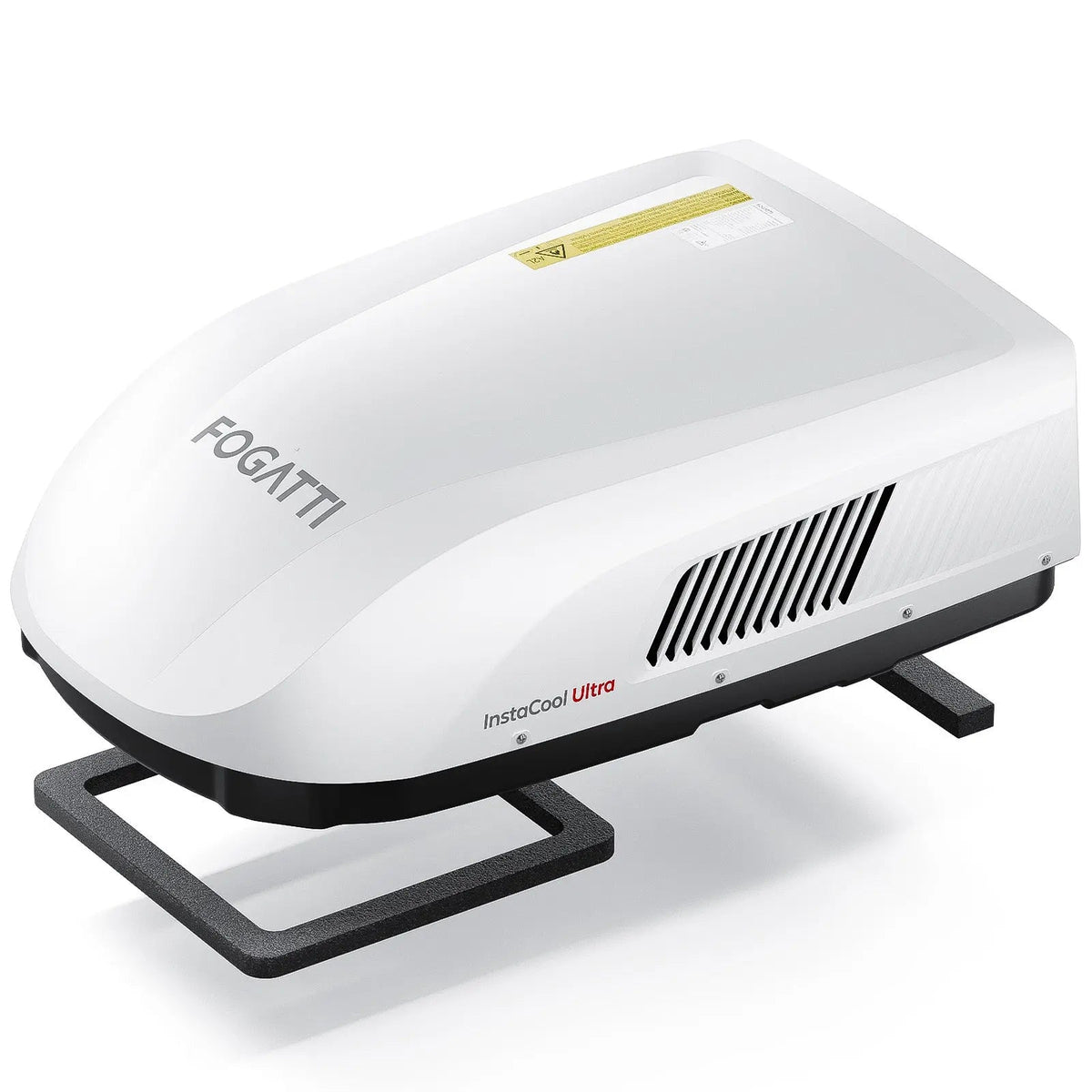

InstaCool Ultra combines 16,000 BTU cooling, 12,500 BTU heat-pump heating and 418 CFM airflow in a low-profile non-ducted rooftop unit. Low mode runs below 43 dB, while app, remote and touchscreen controls keep everyday operation simple.
View all features ↓Best for non-ducted RVs where quieter nights and efficient mild-weather heat-pump comfort matter.
16,000 BTUCooling for RVs up to approximately 36 ft
12,500 BTUHeat-pump warmth for milder weather

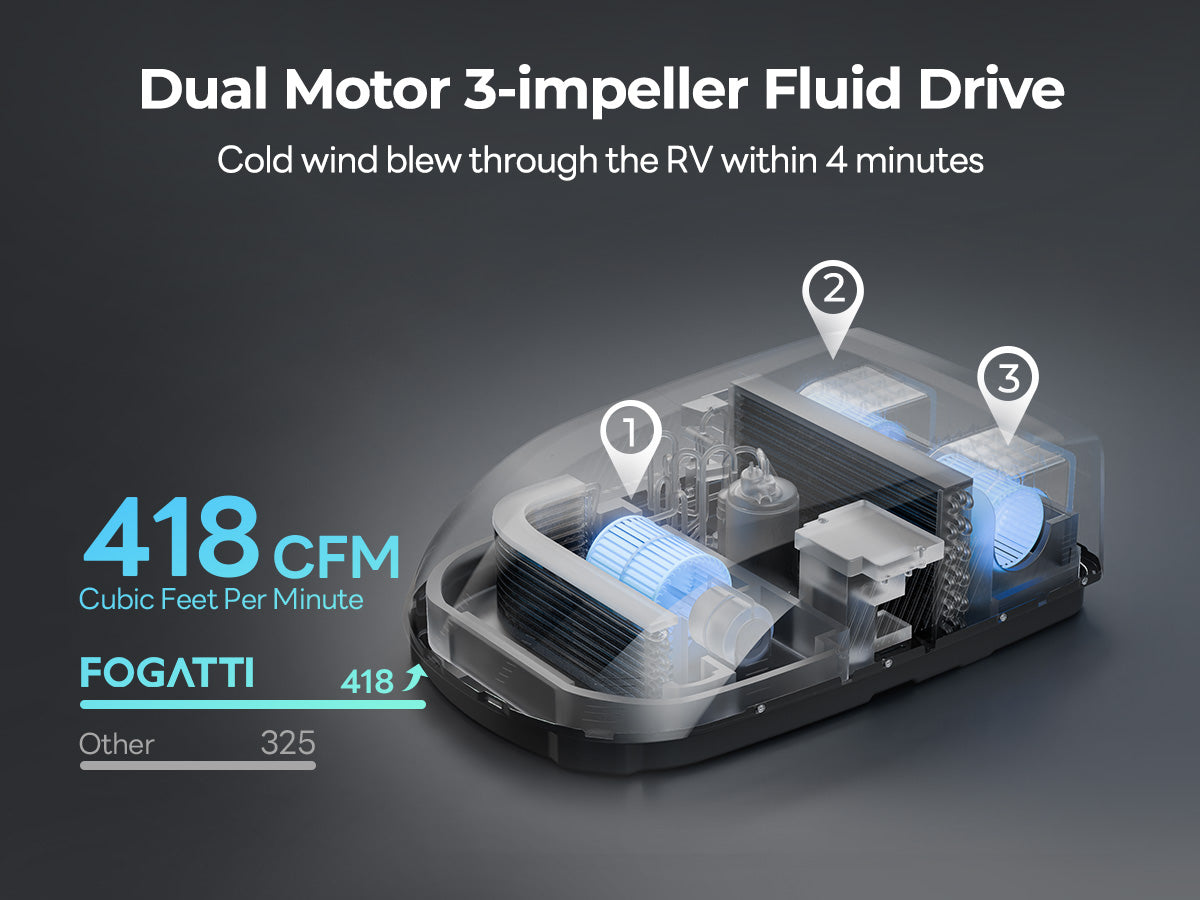

418 CFMDual-motor, three-impeller airflow
<43 dBLow-mode sound for quieter nights
Secure checkout
More options available at checkout
30-day returns
Free contiguous U.S. shipping
2-year warranty

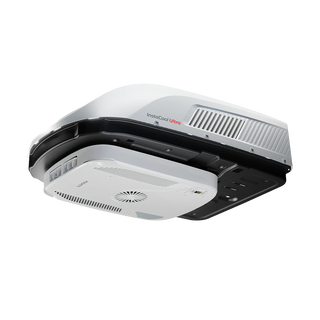

Choose your InstaCool
CURRENT MODEL
Ultra
16K cool · 12.5K heat pump
Choose Ultra whenQuiet non-ducted operation and efficient mild-weather comfort matter.
Pro 18K
18K cooling only
Choose cooling-only whenMaximum summer cooling matters more than adding rooftop heat.
Pro Max
18K cool · 16K heat pump
Choose Pro Max whenA larger rig needs higher cooling and heat-pump output with flexible ceiling installation.

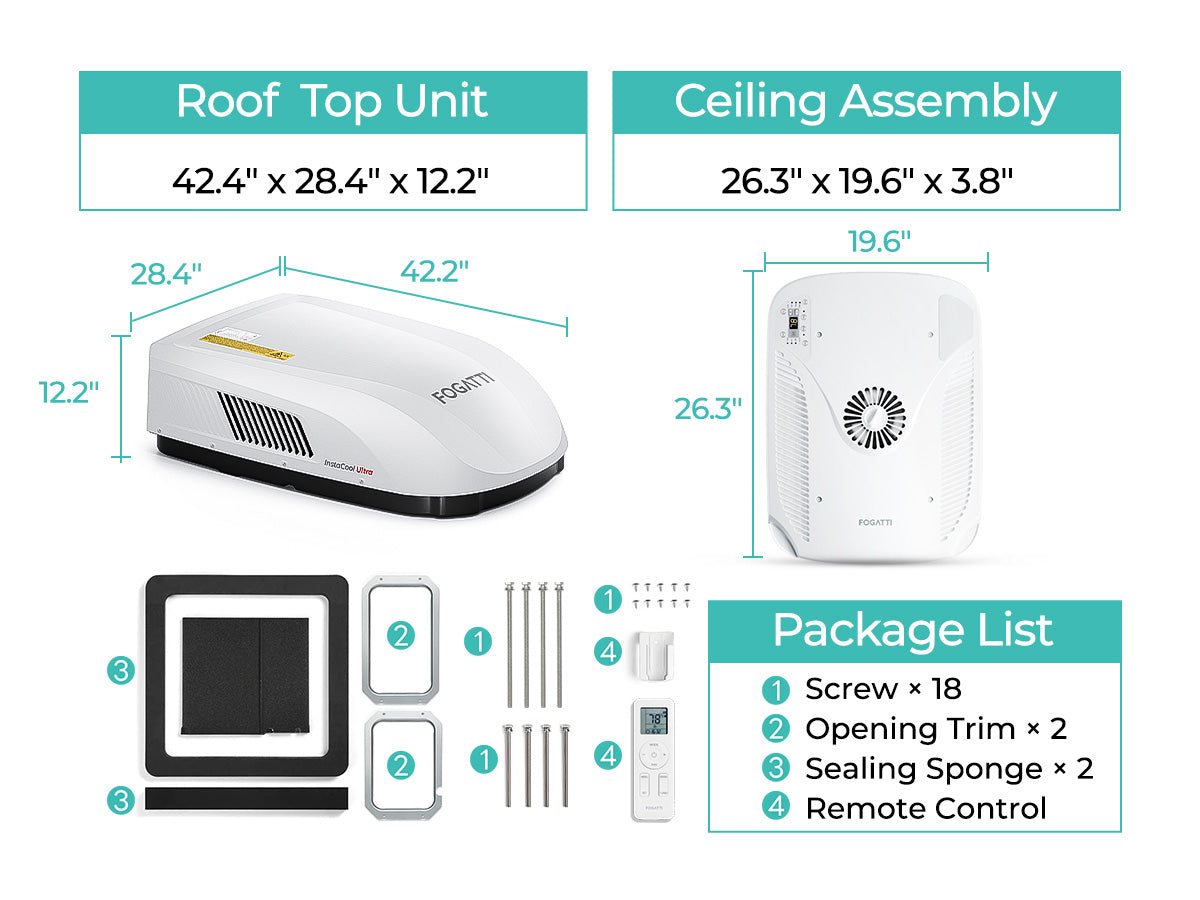

Fit and installation
- Roof opening
- 14.25 × 14.25 in
- Roof thickness
- 1.2–5.0 in
- Ceiling layout
- Non-ducted ADB
- Power supply
- 115V / 60Hz
- Rated input
- 1270W / 11A
- Main Unit Size
- 42.4 × 28.4 × 12.2 in
- Main Unit Weight
- 100.3 lbs / 45.5 kg
- ADB Size
- 26.3 × 19.6 × 3.8 in
- ADB Weight
- 12.1 lbs / 5.5 kg
Professional installation is recommended because the job involves rooftop lifting, weather sealing and 115V electrical work.
What’s included

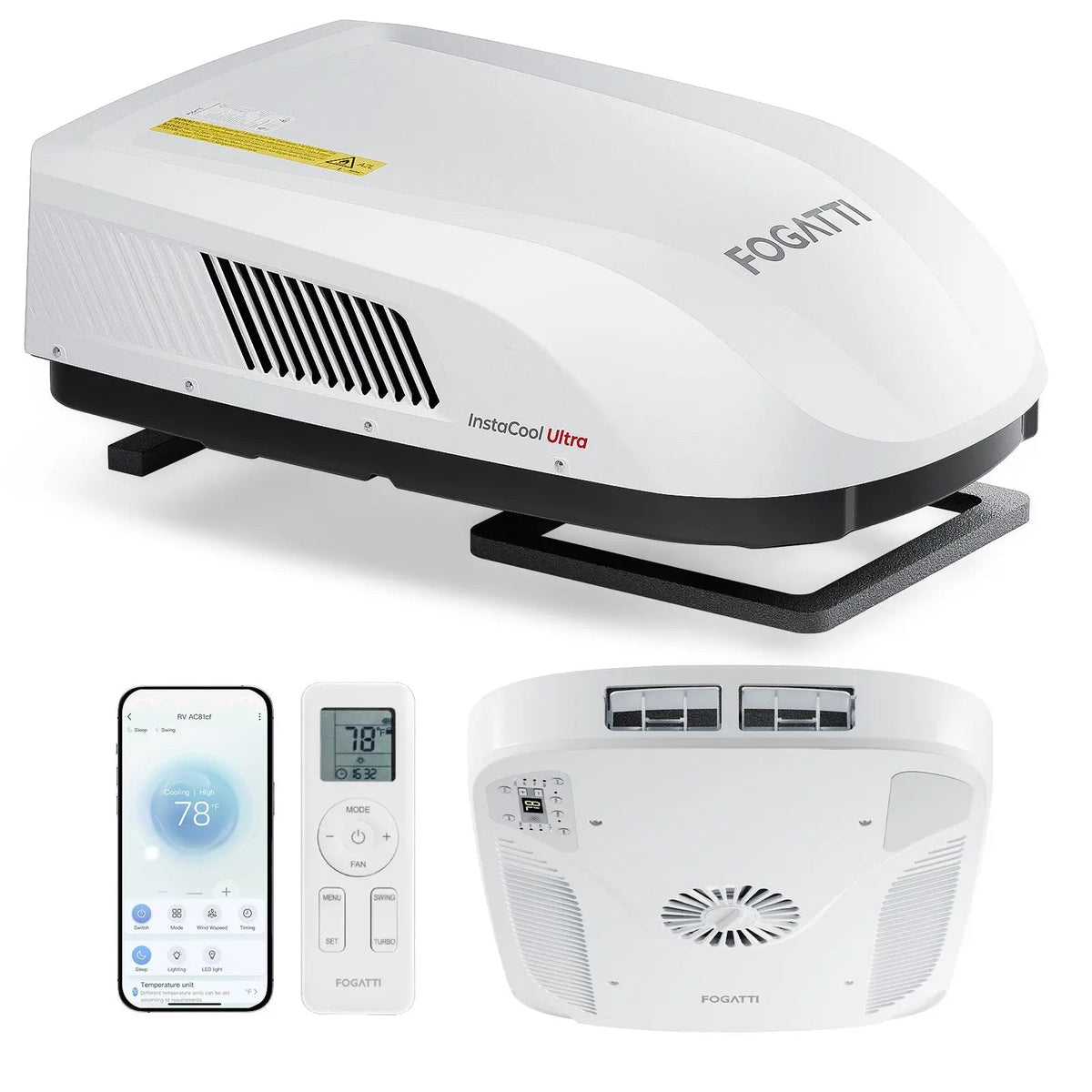

- Rooftop unitInstaCool Ultra air conditioner
- Ceiling assemblyNon-ducted air distribution box
- ControlsHandheld remote control
- Mounting kitHardware and 5.3-inch bolt
- Roof sealing materialsFor weather-tight installation
- Product documentationInstallation and operation manual
Package contents are shown for the selected configuration.
Specifications
- Cooling capacity
- 16,000 BTU/h
- Heat-pump capacity
- 12,500 BTU/h
- Airflow
- 418 CFM
- Set temperature range
- 61–86°F
- Low-mode sound
- Below 43 dB
- Refrigerant
- R32
- Rated input / current
- 1270W / 11A
- Rooftop dimensions
- 42.4 × 28.4 × 12.2 in
- ADB dimensions
- 26.3 × 19.6 × 3.8 in
- Rooftop / ADB weight
- 100.3 / 12.1 lb
Common questions
Which ceiling layout is Ultra designed for?
Ultra is purpose-built for a non-ducted ceiling assembly; choose a duct-compatible InstaCool model for an existing duct system.
When is the heat pump most useful?
It adds efficient warmth in mild weather; use a properly sized furnace in freezing conditions.
Can it run from an inverter?
Yes, when the complete inverter, battery bank, wiring and charging system can support compressor startup and continuous load.
How quiet is it at night?
Low mode is rated below 43 dB. Actual cabin sound depends on installation, fan mode and RV construction.
Recommended for your RV setup
Build a complete RV comfort setup with climate equipment matched to each roof opening and duct layout.
For common tank-water-heater replacement openings
InstaShower Ultra
+$729.99
$899.99
Add stable on-demand hot water with a built-in mixing tank and matching RV door package.
View door and installation fit
For larger ducted RVs and colder travel
InstaHeat 35K
+$739.99
$1,299.99
Add stronger propane heat through a furnace matched to the RV cabinet and central duct system.
Check furnace fit and options
InstaCool Ultra
$1,299.99
$1,749.99
Save $450.00
QUIET ALL-SEASON COMFORT
Quiet comfort for every season
InstaCool Ultra combines 16,000 BTU cooling, 12,500 BTU heat-pump heating, 418 CFM airflow and low-mode sound below 43 dB. It is built for non-ducted RV owners who value quiet nights as much as daytime cooling.
16,000 BTUSummer cooling
12,500 BTUMild-weather heat pump
418 CFMCabin airflow
<43 dBLow-mode sound
Cool fast without dominating the cabin

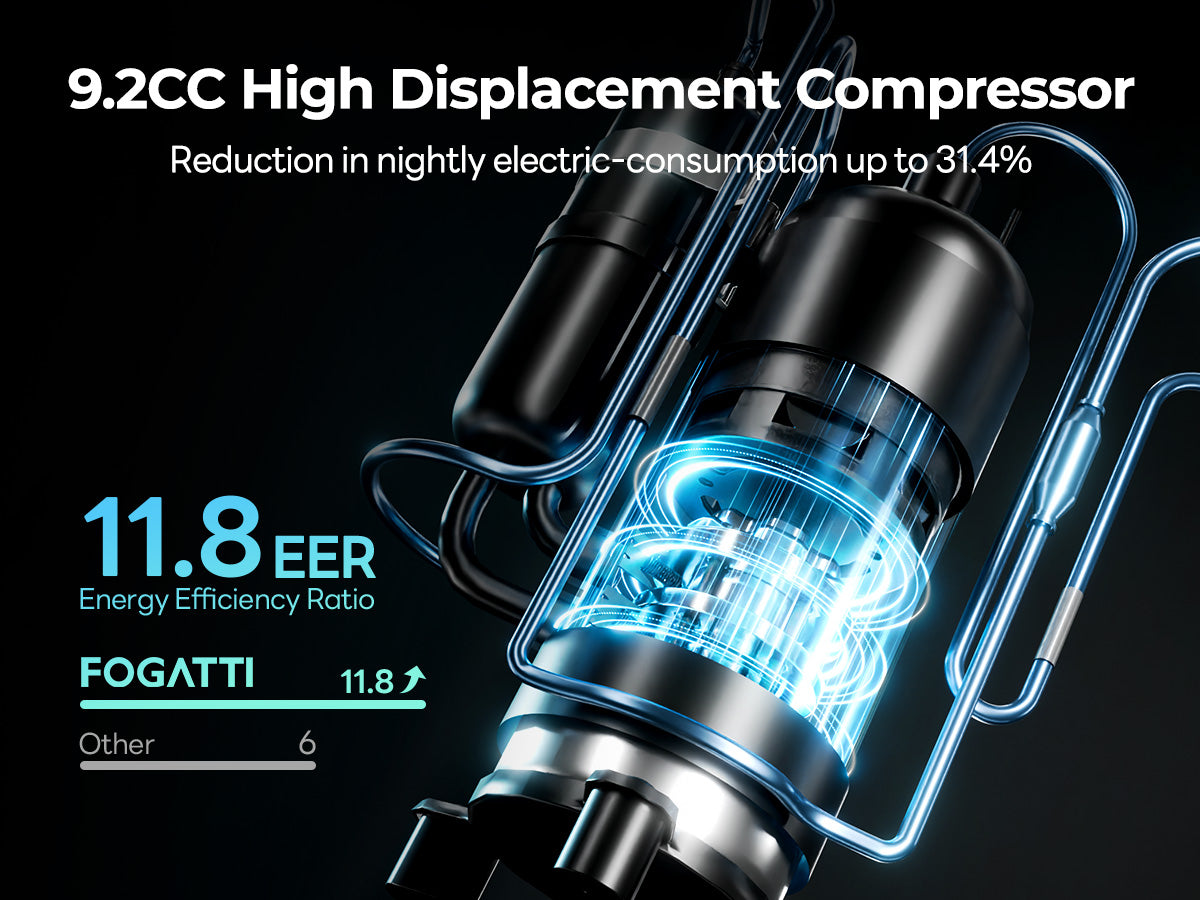

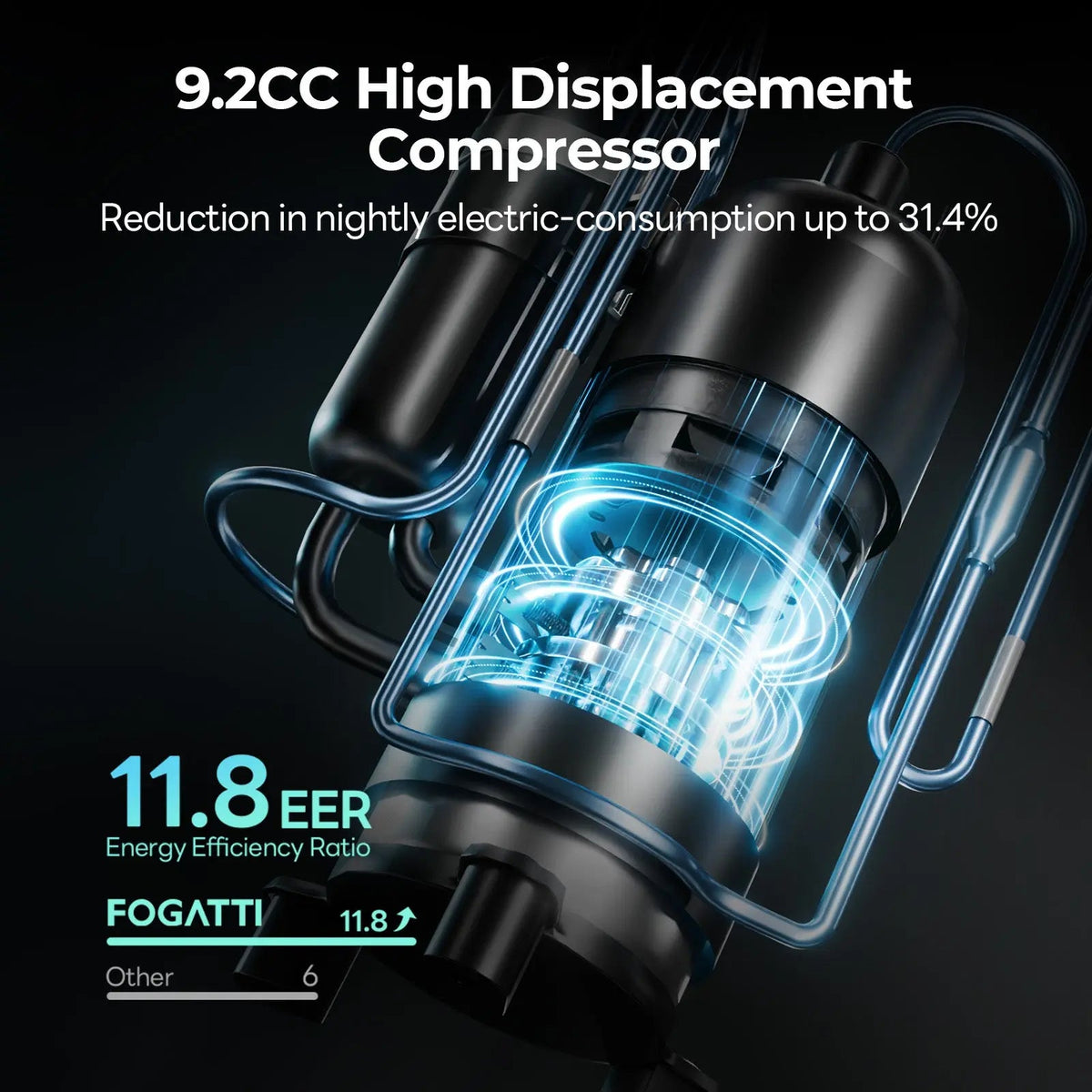

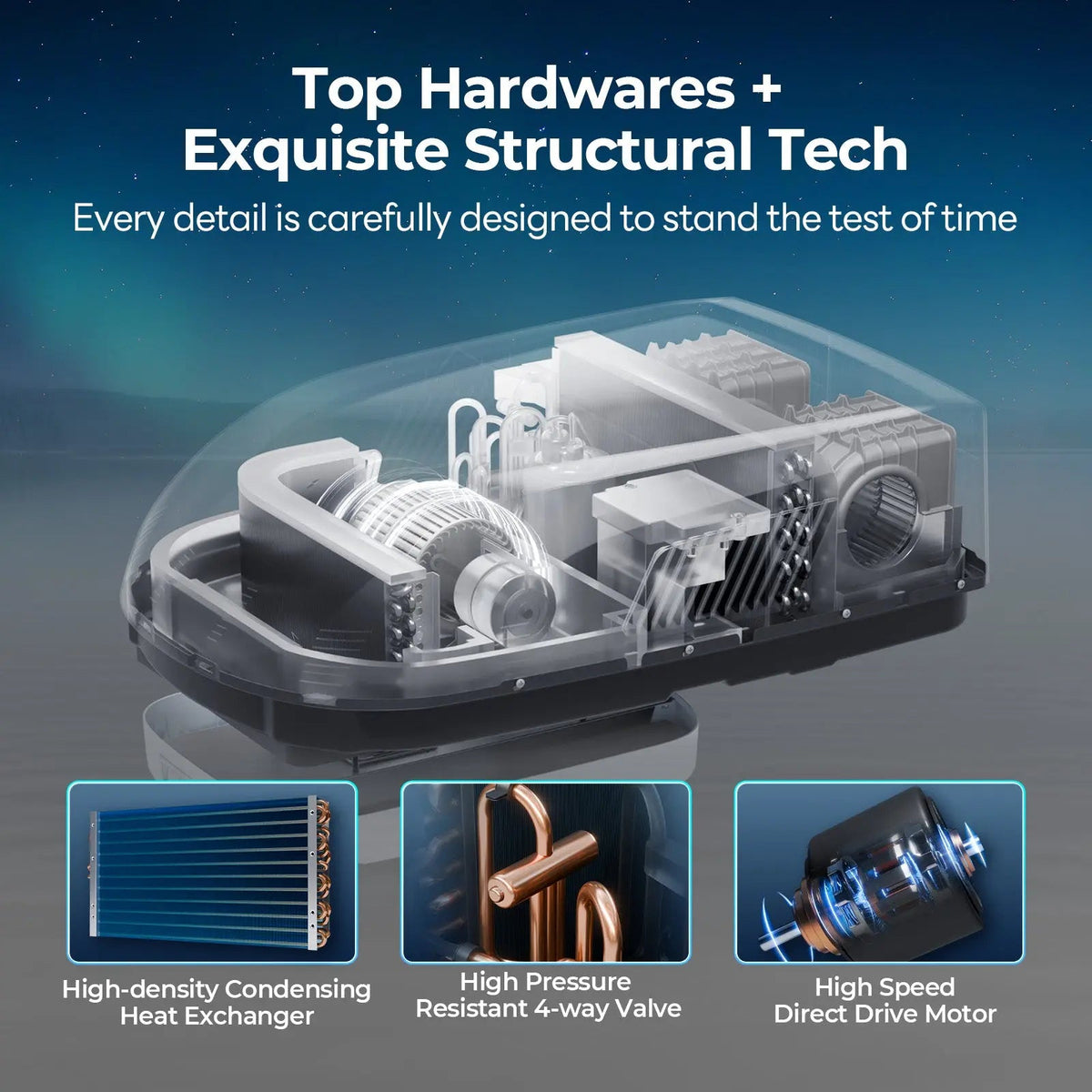

The compressor, separate airflow motors and control options are designed around the parts of rooftop climate control you feel every day.
FASTER RECOVERY
Recover the cabin after a hot drive
The 16K platform adds useful cooling capacity when the RV roof and interior have absorbed hours of summer heat.

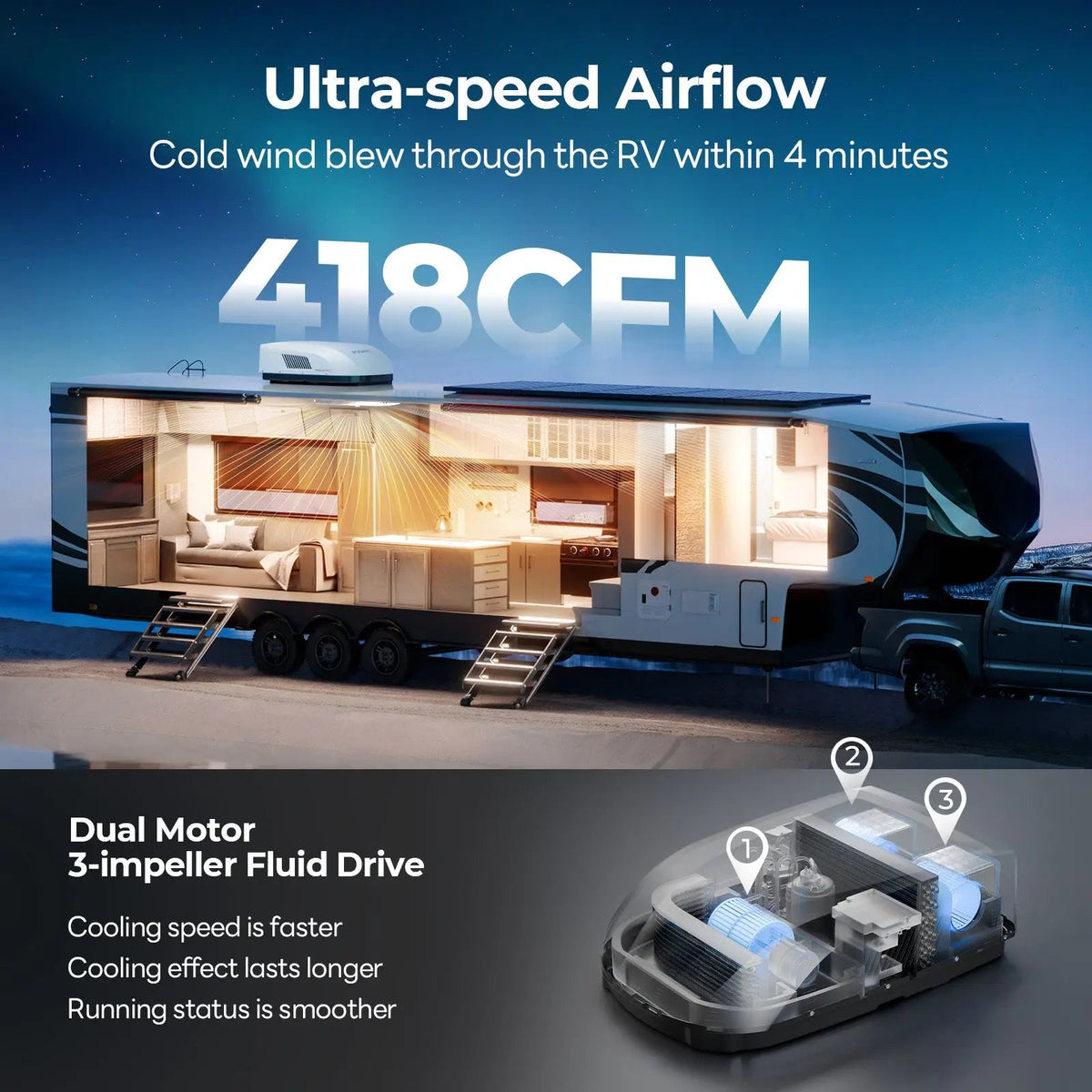

418 CFM AIRFLOW
Move conditioned air beyond the ceiling

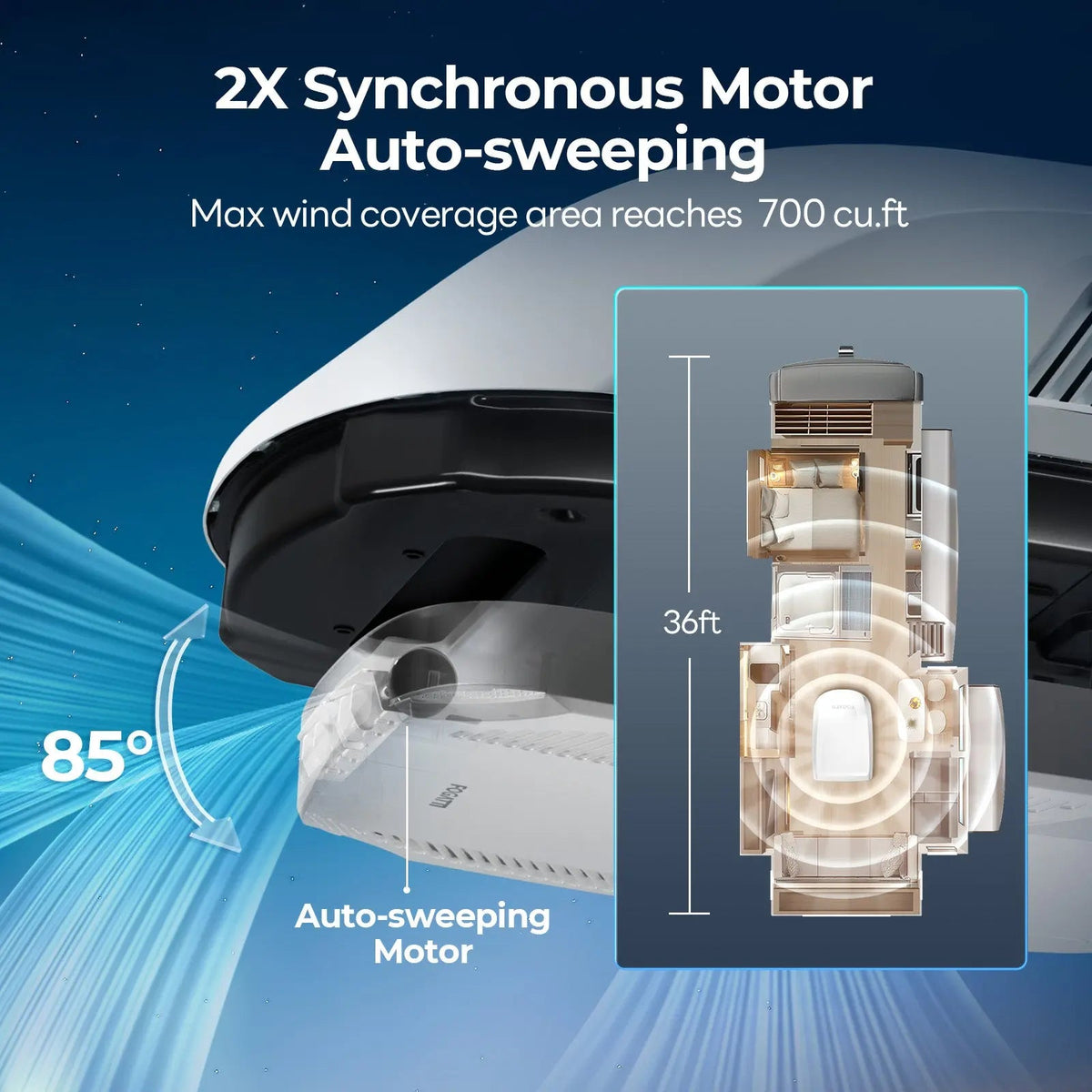

Three impellers help deliver cooled or heated air into the occupied cabin instead of concentrating it around the ADB.
QUIETER OPERATION
Protect sleep with a quieter low mode
Low mode is designed for overnight and maintenance cooling, with installed sound shaped by the RV and mounting.
FLEXIBLE CONTROL
Control comfort from four interfaces
Change temperature, mode and timing without relying on a single control point.
WHO SHOULD CHOOSE ULTRA?
Choose Ultra for quiet non-ducted comfort
Ultra is the best fit for owners who want cooling, useful heat-pump warmth and a lower overnight sound target.
A strong fit for non-ducted RVs
The included ceiling system delivers air directly from the ADB rather than through existing ducts.
Useful for summer and shoulder seasons
The heat pump adds warmth in mild cold, while a furnace remains the right tool for freezing weather.
Choose Pro or Pro Max for a different priority
Pro adds maximum cooling-only output; Pro Max adds 18K cooling, 16K heat and ducted compatibility.
Standard non-ducted rooftop compatibility

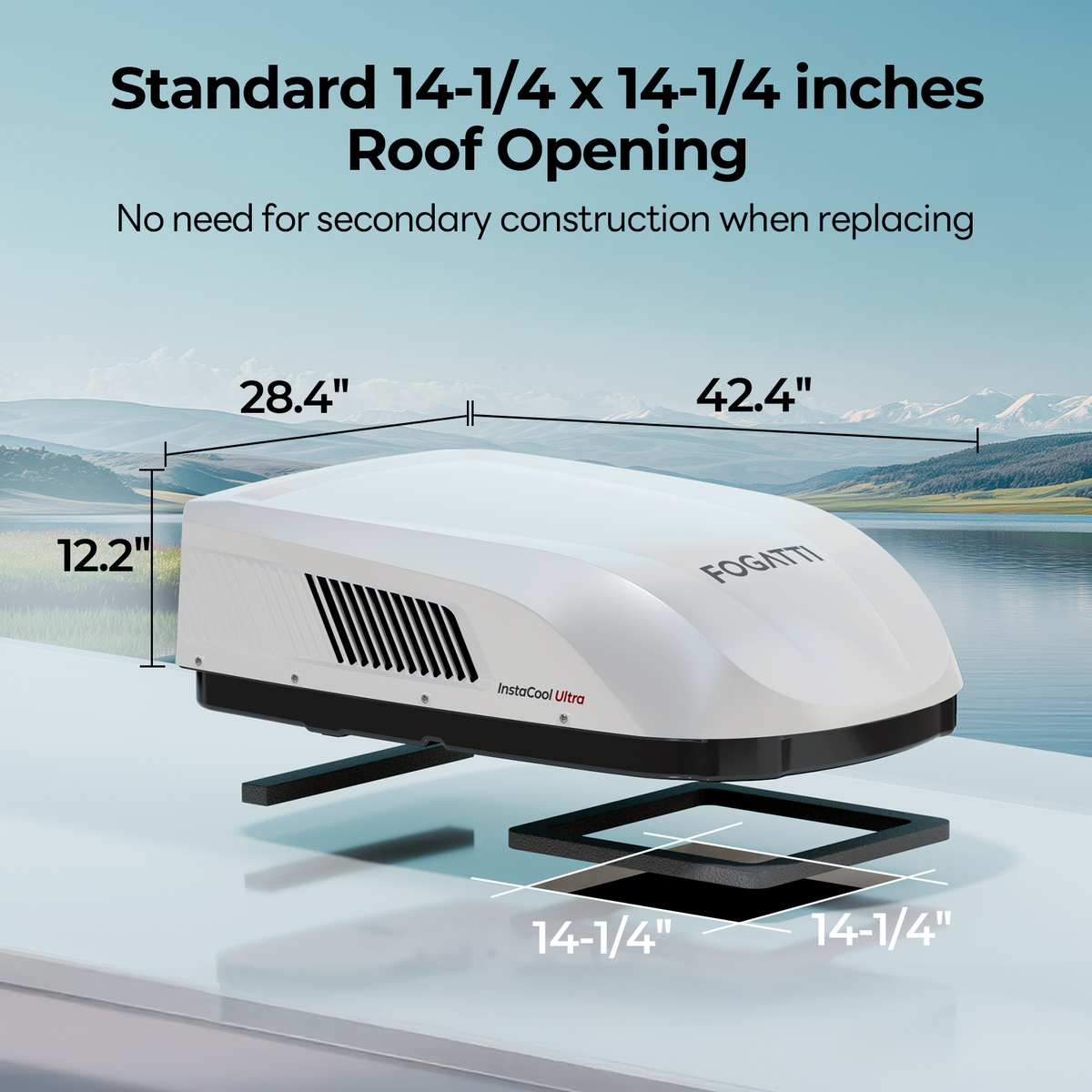

A 14.25 × 14.25-inch opening, compatible roof thickness and non-ducted ceiling assembly support installation.
FIT AT A GLANCE
Designed for a standard non-ducted rooftop opening.
The 14.25-inch cutout, 1.2–5-inch roof range and included non-ducted ceiling assembly cover the key replacement dimensions.
- Roof opening
- 14.25 × 14.25 in
- Roof thickness
- 1.2–5.0 in
- Rooftop size
- 42.4 × 28.4 × 12.2 in
- Ceiling layout
- Non-ducted ADB
- Rated input
- 1,270W / 11A
For an existing ceiling-duct system, choose a ducted-compatible InstaCool model.
Choose by sound, output and ceiling layout
Choose Ultra for quiet non-ducted comfort, Pro for maximum cooling-only output, or Pro Max for ducted heat-pump flexibility.
InstaCool Ultra
For non-ducted RVs where quiet nights and mild-weather warmth matter.
- Cooling
- 16K BTU
- Heating
- 12.5K heat pump
- Low mode
- Below 43 dB
InstaCool Pro 18K
For hotter summer travel when rooftop heating is not needed.
- Cooling
- 18K BTU
- Heating
- None
- Ceiling
- Ducted / non-ducted
InstaCool Pro Max
For larger rigs needing 18K cooling, 16K heat and flexible installation.
- Cooling
- 18K BTU
- Heating
- 16K heat pump
- Ceiling
- Ducted / non-ducted
See quiet cooling and rooftop installation
Cooling performance, rooftop replacement and power planning in three practical videos.
▶18K PLATFORM TEST
See how an 18K rooftop system is tested
A detailed look at measured cooling behavior and operating performance.
▶ROOFTOP INSTALLATION
See what a replacement installation involves
Roof preparation, lifting, sealing, ceiling work and startup checks.
▶POWER PLANNING
Understand inverter and battery requirements
Startup load, continuous draw and cooling away from full hookups.
Quick answers about Ultra cooling, heat and fit
Quick answers on non-ducted fit, heat-pump use, capacity and power.
Which ceiling layout is Ultra designed for?
Ultra is designed for non-ducted RVs and includes direct ceiling airflow. For an existing ceiling-duct system, choose a ducted-compatible InstaCool model.
When is the heat pump most useful?
It adds efficient warmth for cool mornings and shoulder seasons. Use the RV furnace for freezing conditions.
What size RV is it intended for?
Fogatti positions Ultra for RVs up to approximately 36 ft and about 600 sq. ft., with actual results shaped by insulation, sun exposure and climate.
Can it run from an inverter?
It can when the inverter, battery bank, wiring and charging system support compressor startup and continuous operation.
What installation does it support?
It uses a 14.25 × 14.25-inch opening, 1.2–5-inch roof thickness, 115V power and a non-ducted ceiling assembly.
Ready for quieter all-season comfort?

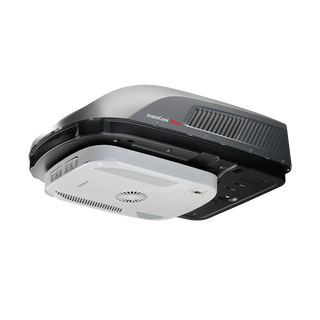

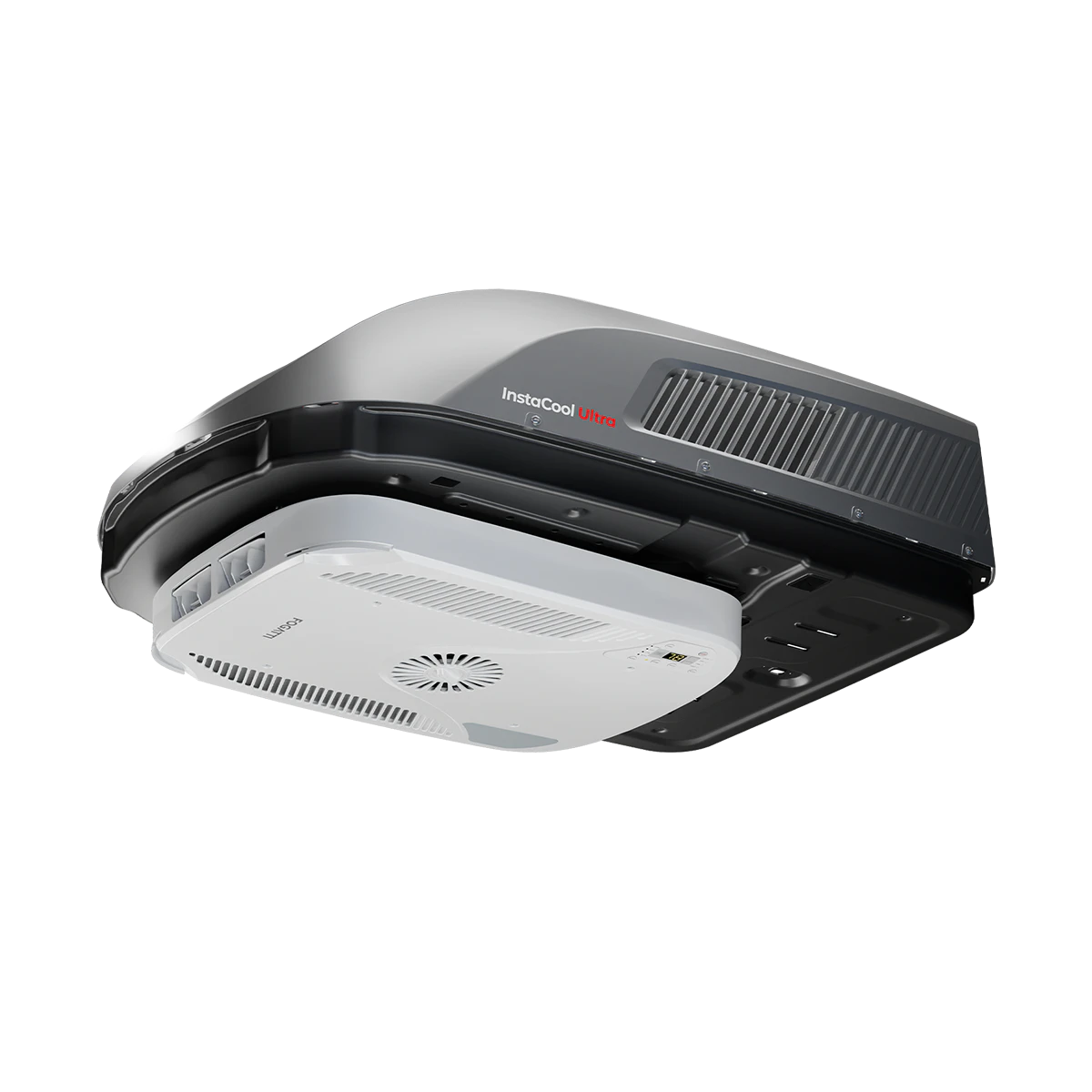

Choose Gray or White above. The installation guide is available for final fit planning.
This product is rated 4.9 of 5.0 stars.
It has received 39 reviews.
Overall rating: 4.9473686 / 5 from 38 reviews.
AI Generated Review Summary
The Fogatti InstaCool Ultra Rooftop RV Air Conditioner offers efficient cooling and heating for RVs up to 36 feet long, with a quiet operation and versatile control options. Its dual-motor system ensures rapid temperature control, while the non-ducted design simplifies installation. The unit's slim profile and road-ready design make it suitable for various RV types and travel conditions.
Summary topics
- Performance and Quietness (29%): Based on a significant number of customers, the unit is highly praised for its performance and quietness.
- Installation Ease (29%): Customers keep praising the easy installation process of the product, with multiple reviews mentioning how simple and straightforward it is.
Review topics: [].
Review highlights
- "Very happy with the airflow, cooling ability and quiet operation." —
Reviews
Great customer service. Replaced
"Great customer service. Replaced an old domestic brisk air AC in our coachmen class C RV. Pretty much plug and play since unit did not require a 12vdc run for a thermostat. Controlled by a remote and push button display on internal unit. Most units require 12v dc so make sure you have that available or can run it. So far all is good. Nice and quiet and plenty of output for our 24ft rig."
very nice unit
"Assembled very easy. Removed a ducted command unit and replaced with this non ducted. Only issue is had was the light does not work. To early to give a unit preference yes, as only have installed 1 day but it did do good for the test run."
Easy install and perfect
"Easy install and perfect fit. Replaced an old 13. 5k byu domestic with 120 AC input. There was no need for 12v DC to run this unit since it came with a remote and push button controls on inside unit. Very quiet too. Great customer service from Foghatti!!!!"
I m happy
"I m happy with the oerformance of the unit. However; the air distribution box does hang down a few inches from the ceiling in my 1970 s Airstream and interfered with the bulkhead that separates the bedroom from the front of the trailer. This will not be an issue on newer Airstreams but it required the installers to fasten the roof unit with the air box attached. They finally were able to everything bolted down and there is only 1/8 inch clearance from the air distribution box and the bulkhead. The unit blows cold and is quiet. It does deliver air to the front and rear end caps of the trailer."
Very happy with the airflow,
"Very happy with the airflow, cooling ability and quiet operation."
Excellent product, rapid AC
"Excellent product, rapid AC cool down, very quiet! Very happy with the InstaCool Ultra and Fogatti customer support. Our Sprinter 170 is now more livable all year round."
Works great. Simple enough
"Works great. Simple enough to install myself."
The best!!!!
"The best!!!!"
Our original unit installed
"Our original unit installed on our 2015 hideout died. I chose this unit and shipping was fast. Install was simple and straight forward. Our summer temps reach triple digits. With this new unit it maintains 74 inside the trailer without trying. It s super quiet inside and out. Super impressed."
Just installed this unit
"Just installed this unit on our Airstream Interstate to replace the original Carrier V unit. What a difference. More cooling capacity, substantially quieter, remote control and heat pump as a bonus. We couldn t be happier with this unit. Looked at several others, really glad we picked this one. Installation is fairly simple and straight forward. More difficult to remove the old unit than install the new one."
