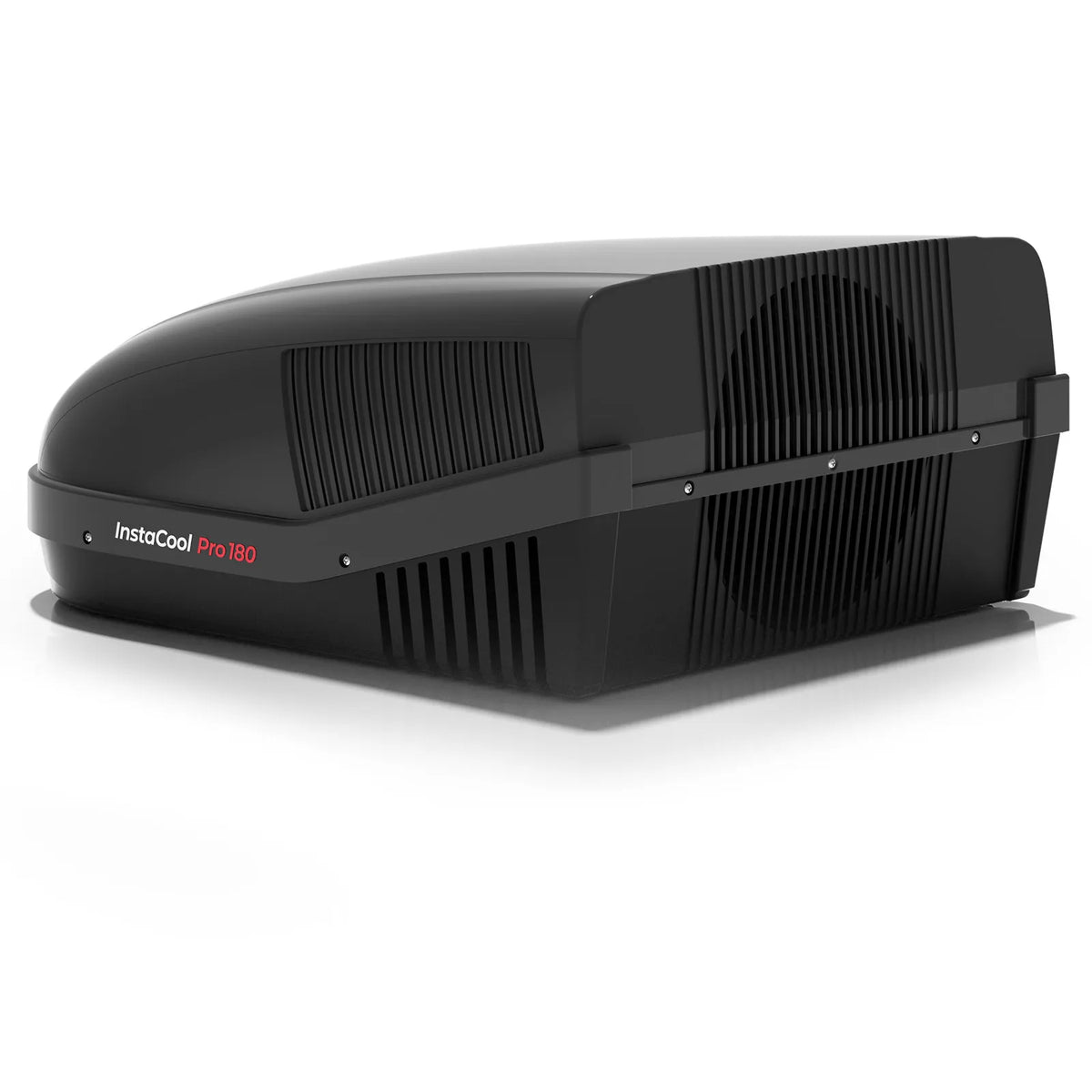

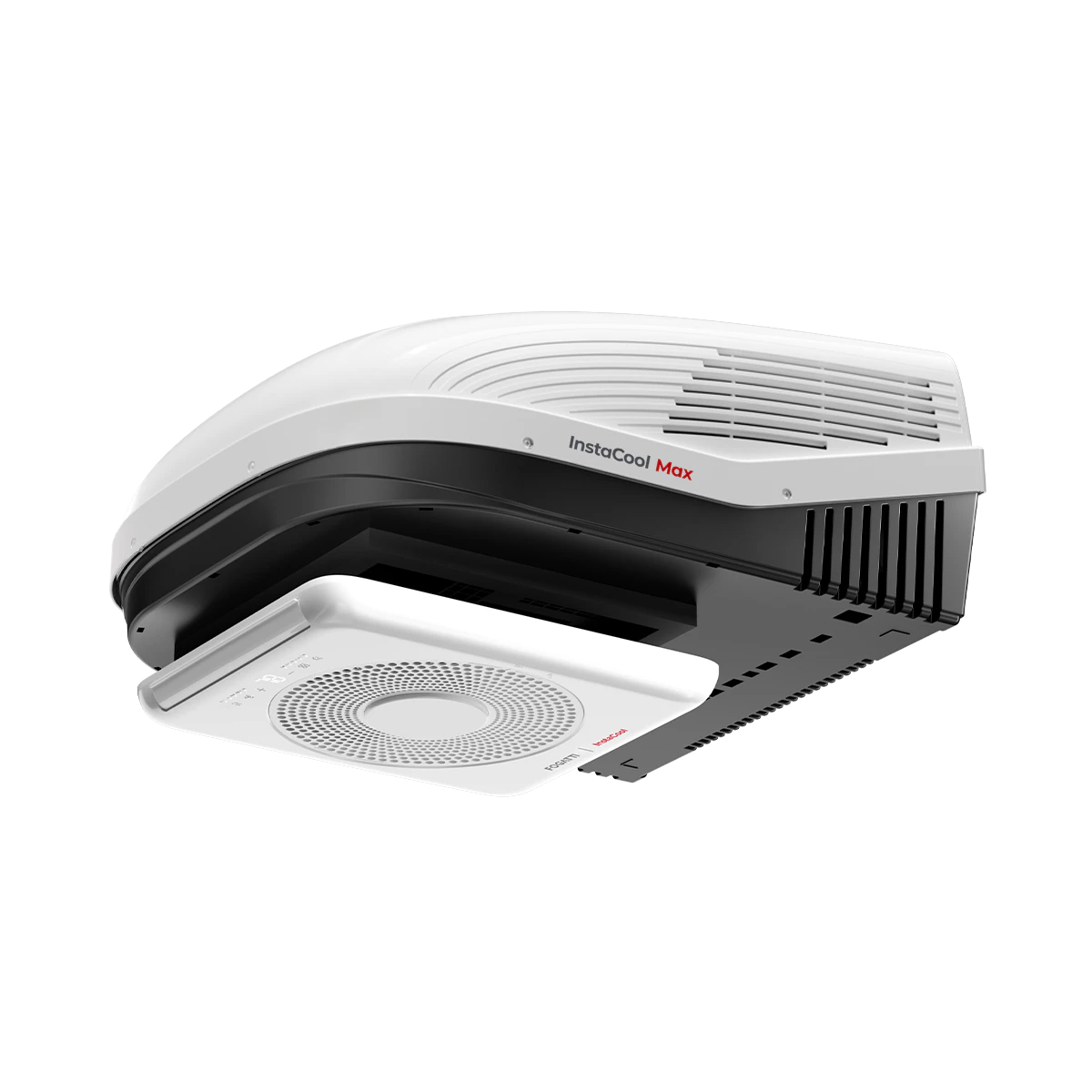

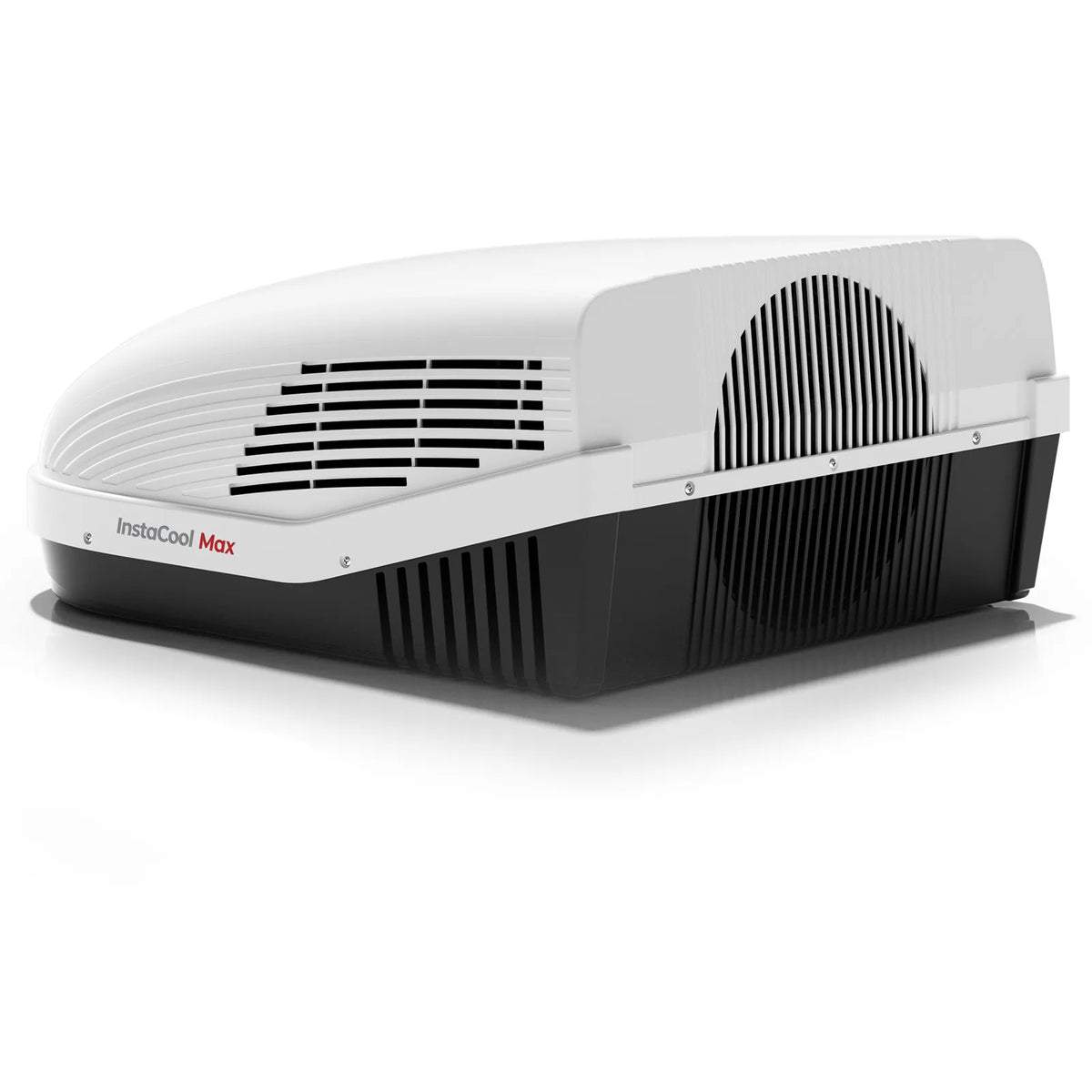

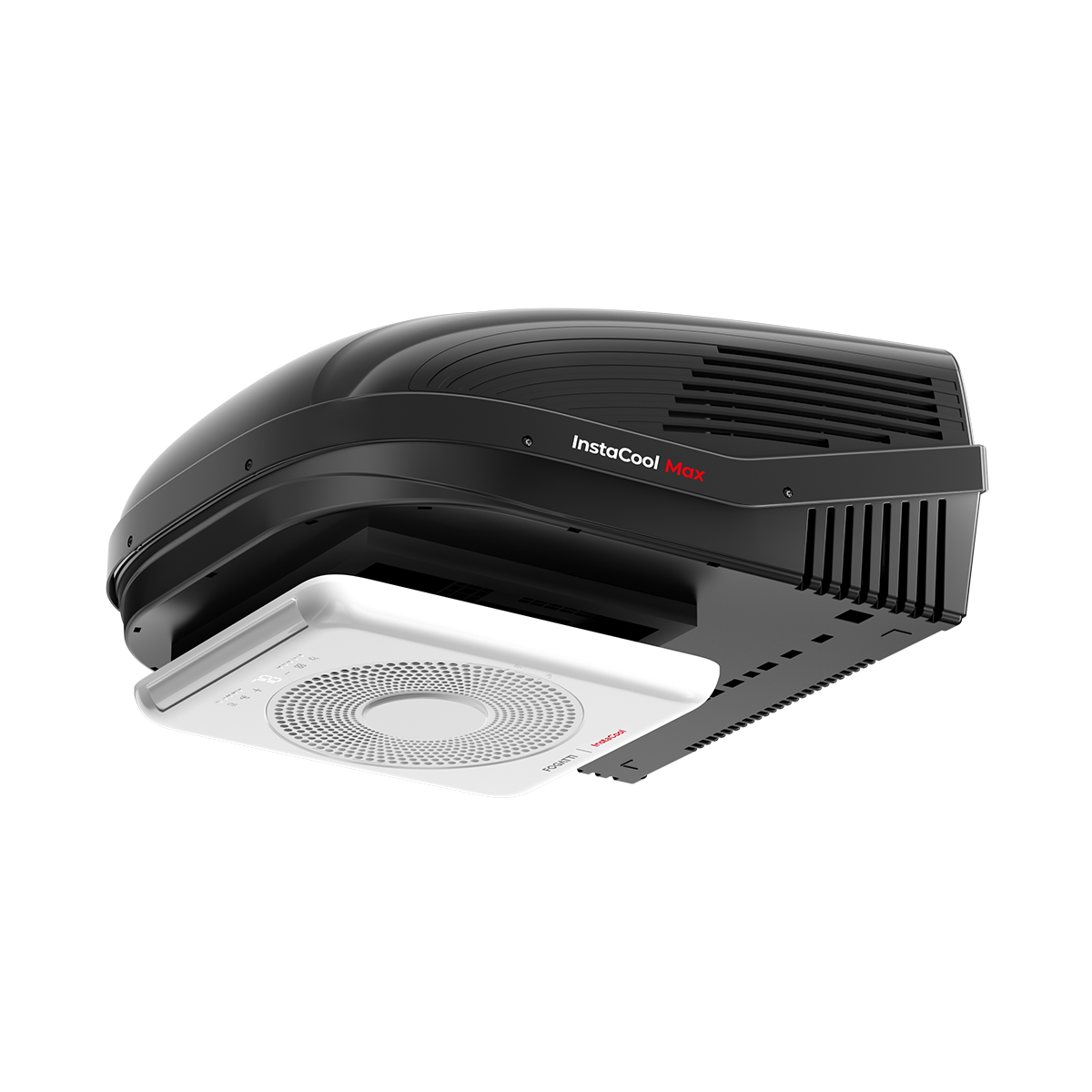

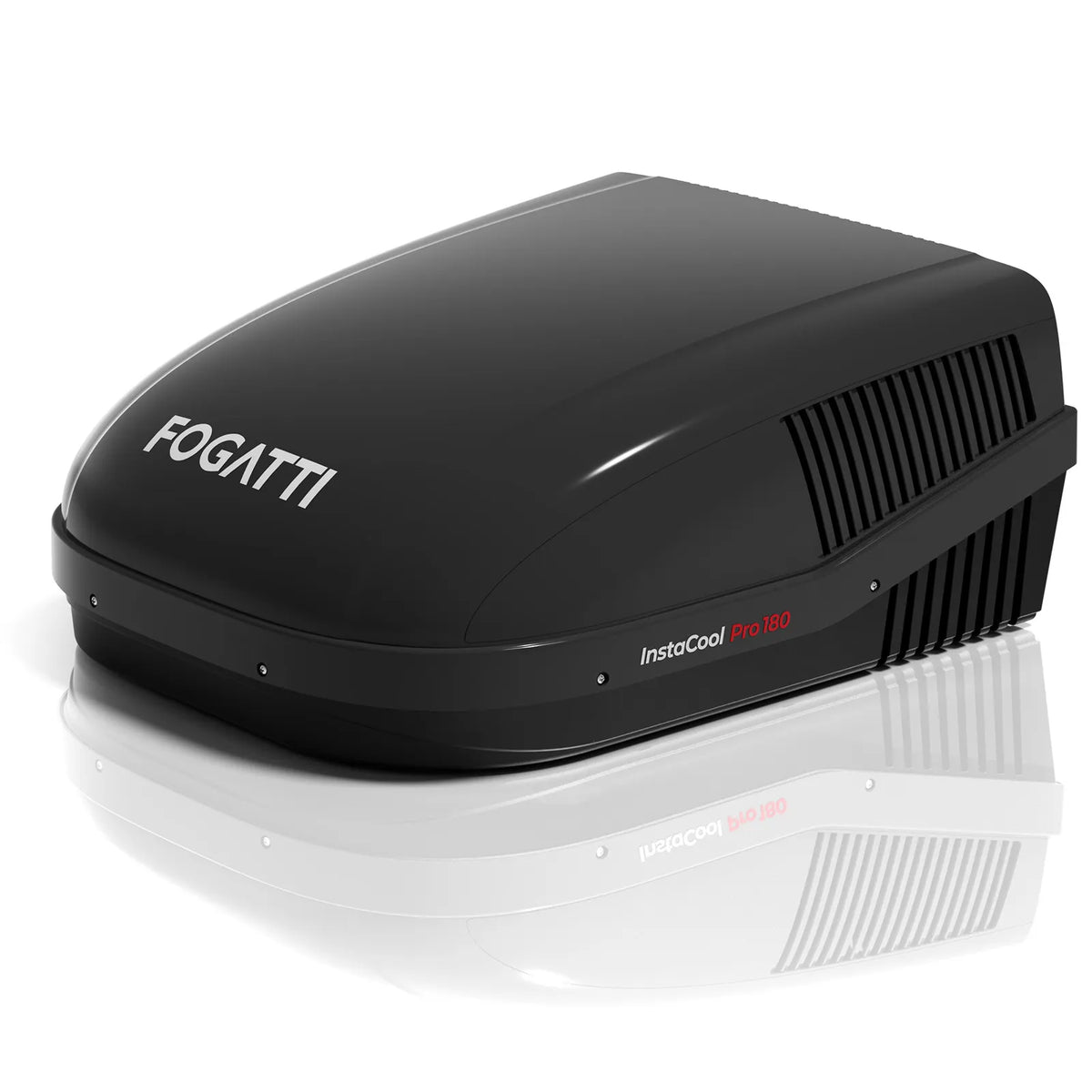

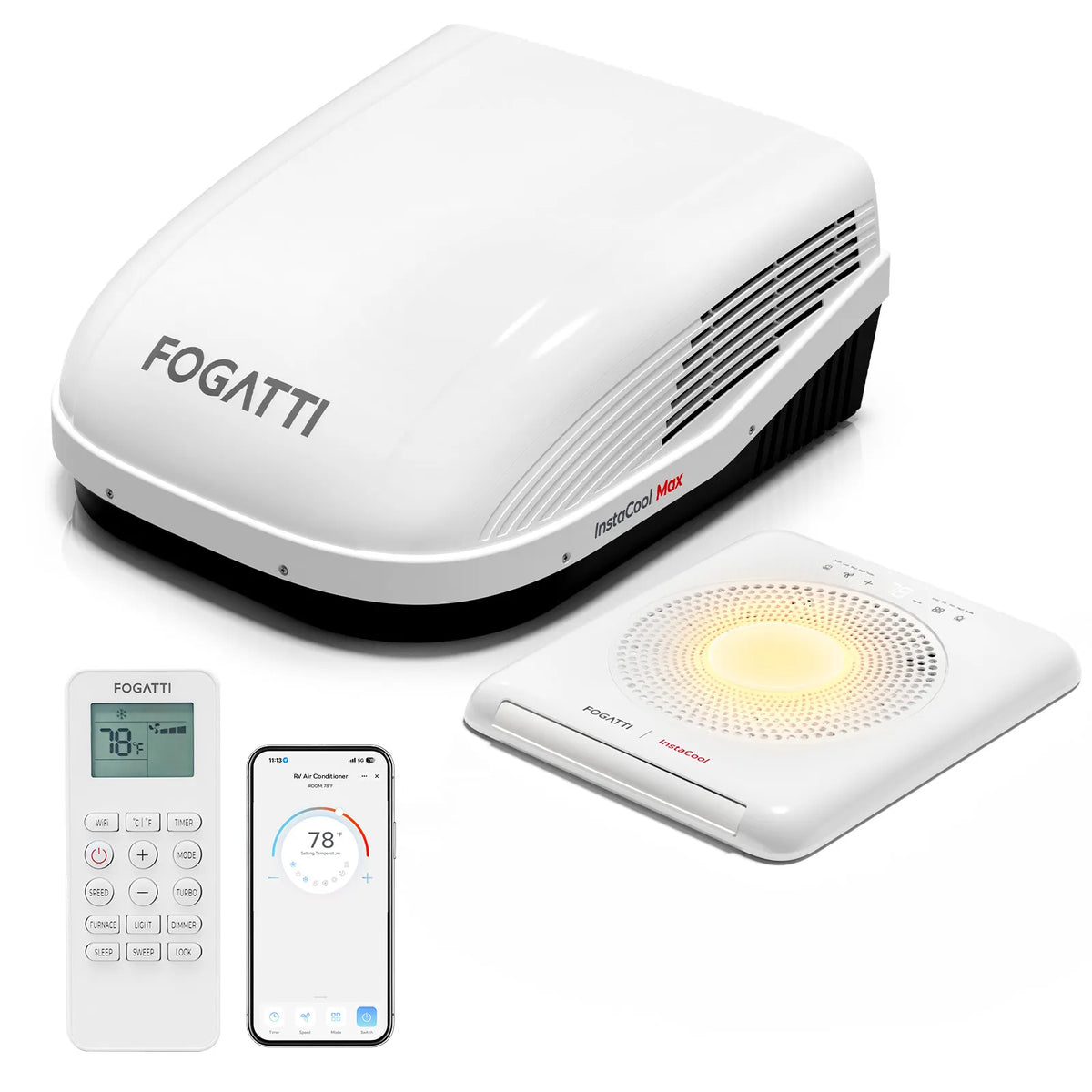

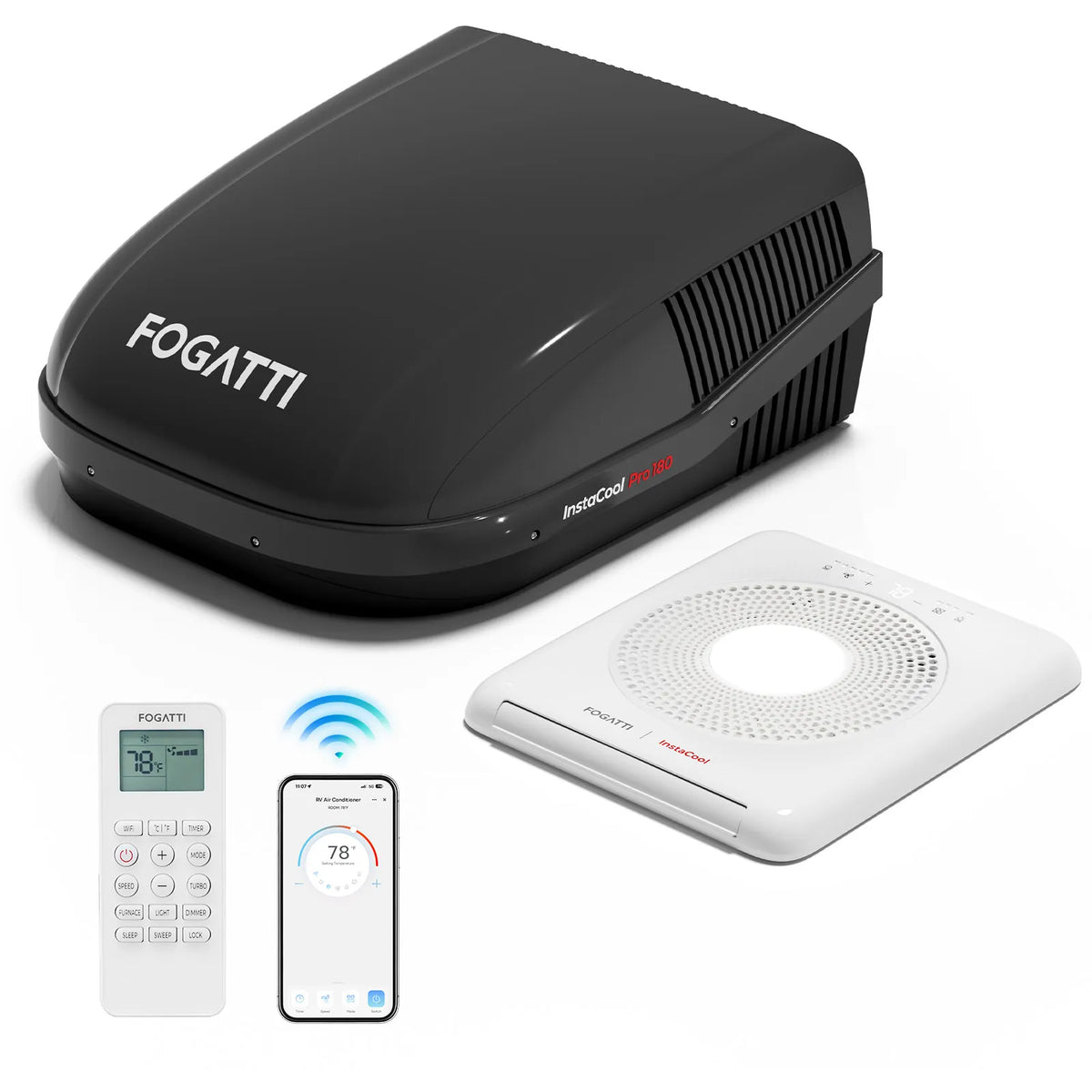

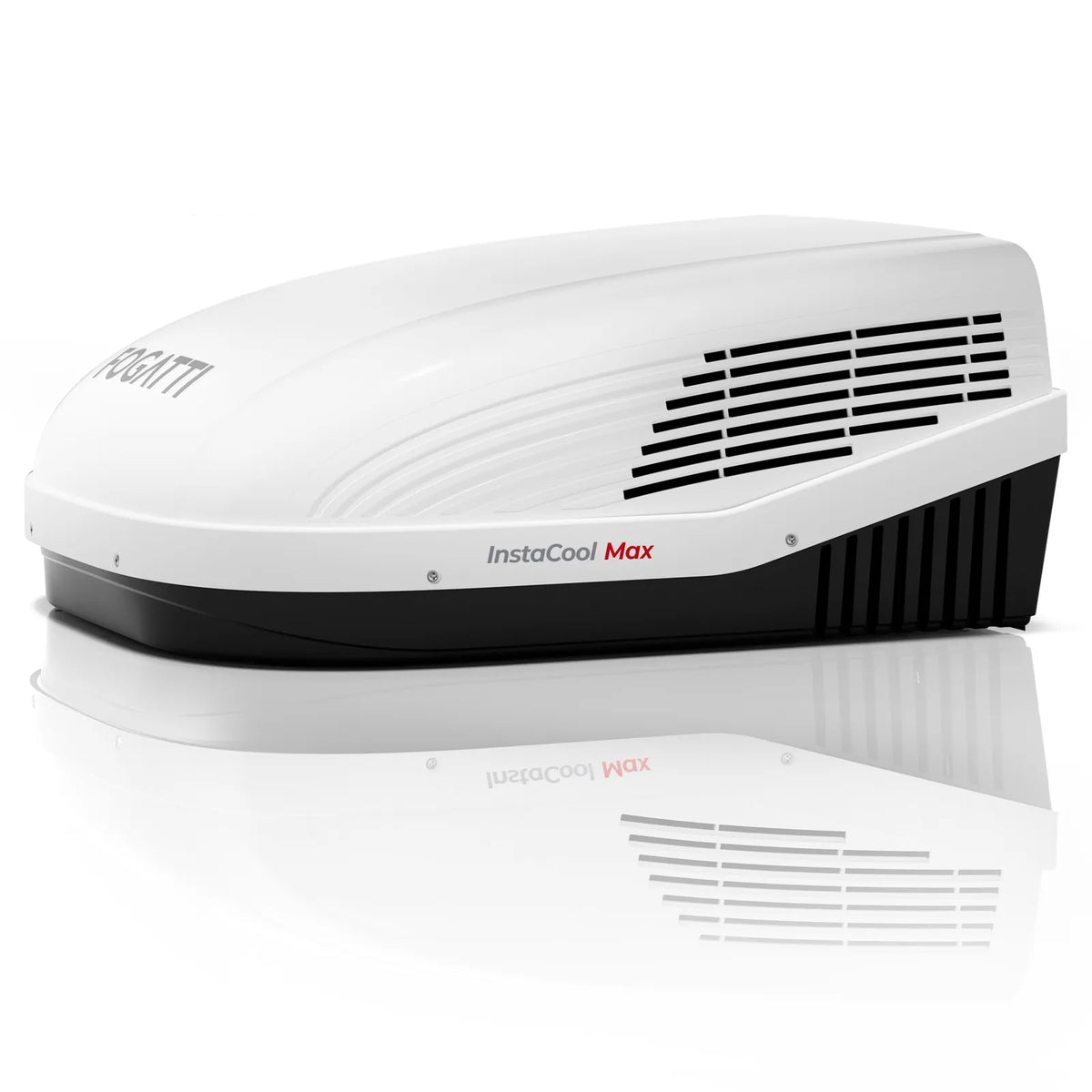

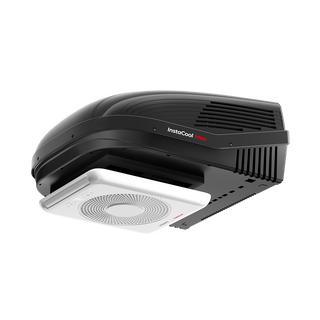

InstaCool Pro Max
[Pre Order] RV air conditioner with heat pump
$1,699.99
$1,939.99
Save (%)
BFCM Price Protected
Black Friday & Cyber Monday price protection
Shop early with confidence. If the same item is offered for less on fogatti.com during our Black Friday & Cyber Monday event, contact us to request an eligible price adjustment. Terms and exclusions apply.
View price-protection terms
Higher output for larger RVs and changing weather.
InstaCool Pro Max combines 18,000 BTU cooling, a 16,000 BTU heat pump and dual variable-speed motors in a rooftop system for ducted or non-ducted RVs. It is built for demanding summer travel while retaining heat-pump comfort for cooler days.
View all features ↓18,000 BTUCooling for hotter weather and larger cabins
16,000 BTUHeat-pump warmth for cooler travel
4 fan speedsVariable airflow for changing demand
Ducted / non-ductedChoose the ceiling layout that fits your RV
Best for larger RVs that need 18K cooling, stronger heat-pump output and a ducted or non-ducted installation path.
BACKED BY FOGATTI
Official WarrantyAutomatically activated with your direct order.2-year warranty · Original parts included
Reference valueReference value $60.00$0.00
Included
No forms · Latest-batch priority
Details
Original parts included
Your appliance, its original components and all original accessories included with your purchase are covered against defects in materials and workmanship.
2-year warranty
No separate registration required
Your direct order is your proof of purchase. Use your order number for warranty support—no registration form needed.
Priority for the latest available production
Direct orders receive priority for the newest available production batches for the selected model, color and fulfillment location. Product refinements may vary by batch; new features are not guaranteed.
Free contiguous U.S./Canada shipping30-day returns
Coverage period, exclusions, labor and shipping terms depend on your model. Review the full warranty terms before purchase.
View warranty terms (opens in a new tab)Specifications & support
Compare models
Choose your InstaCool
Specifications
- Cooling / heating
- 18,000 / 16,000 BTU
- Cooling operating range
- 63–115°F
- Heating operating range
- 28–86°F
- Temperature setting
- 61–88°F
- Fan speeds
- 4
- Indoor airflow
- 374 / 338 / 300 / 271 CFM
- Indoor sound
- 52 dB
- Power input
- 1,550W
- Refrigerant
- R32
Quick answers
Can I use it with an existing duct system?
Yes, when the ducted ceiling assembly is selected and the RV duct layout meets the installation
requirements.
Does the heat pump replace a propane furnace?
The heat pump adds warmth in milder cold; use a properly sized furnace for freezing-weather travel.
Can it run from an inverter?
Only when the complete inverter, battery, wiring and charging system can support compressor startup and
continuous load.
Complete your RV setup
Build around a larger RV with hot water and cold-weather systems matched to its doors, ducts, power and utilities.
For common tank-water-heater replacement openings
InstaShower Ultra
+$729.99
$899.99
Add stable on-demand hot water with a built-in mixing tank and matching RV door package.
View door and installation fit
For large ducted RVs and winter travel
InstaHeat 35K
+$699.99
$1,299.99
Pair heat-pump warmth with higher-output propane heat for colder conditions. Confirm furnace cabinet dimensions, ductwork, 12V power and LP supply.
Check furnace fit and options
InstaCool Pro Max
Checkout code
--:--:--
$1,699.99
$1,939.99
Save (%)
18K COOLING + 16K HEAT PUMP
High-output comfort across more seasons
InstaCool Pro Max combines 18,000 BTU cooling, 16,000 BTU heat-pump heating and ducted or non-ducted compatibility. It is the step-up choice for owners who want high summer output without giving up useful rooftop heat in cooler weather.
18,000 BTUHigh-output cooling
16,000 BTUHeat-pump heating
Up to 115°FHot-weather cooling
Ducted / non-ductedFlexible installation
Cool hard and keep traveling into fall
Pro Max adds stronger heat-pump output and flexible ceiling compatibility without stepping away from the 18K cooling platform.

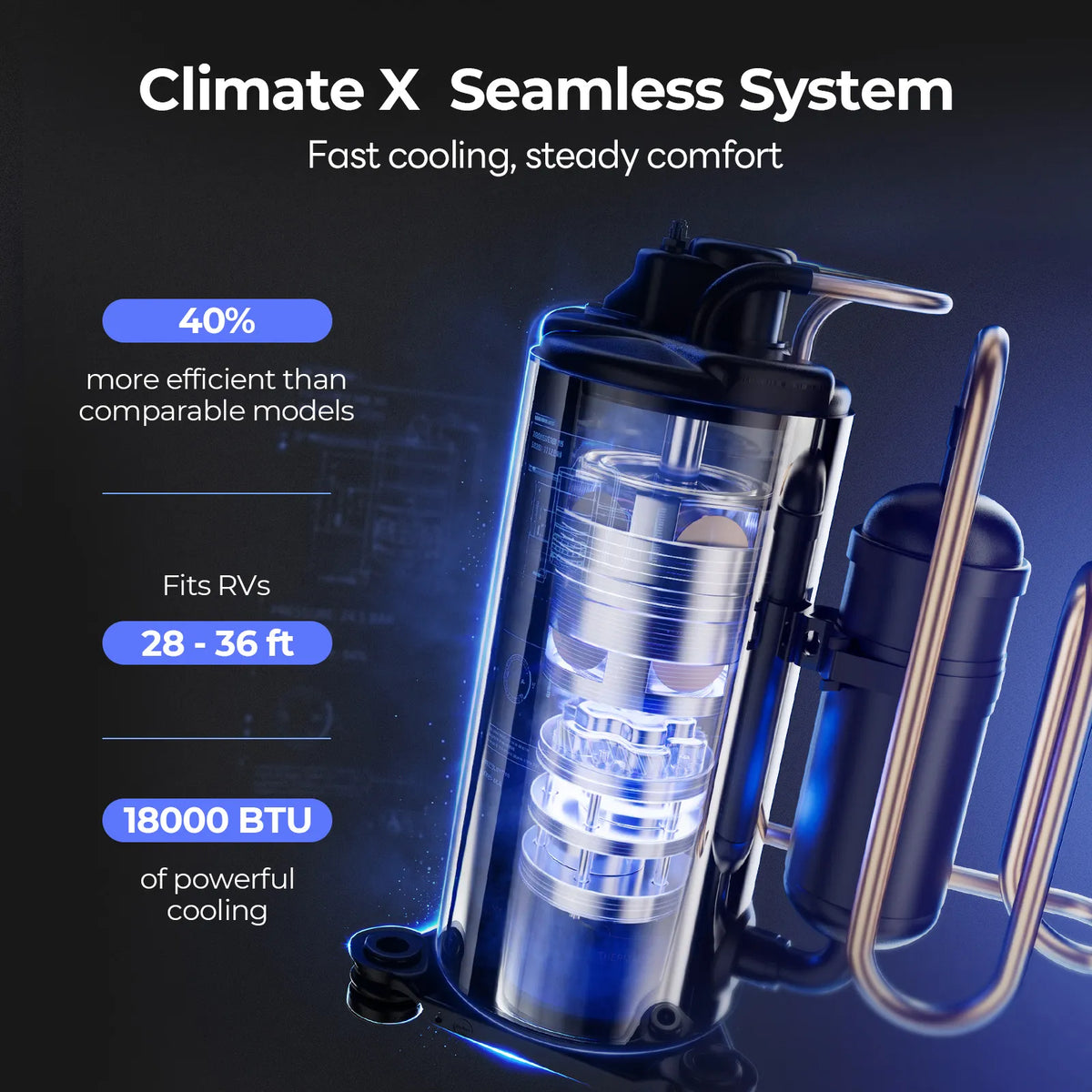

18K SUMMER COOLING
Recover larger cabins after summer heat

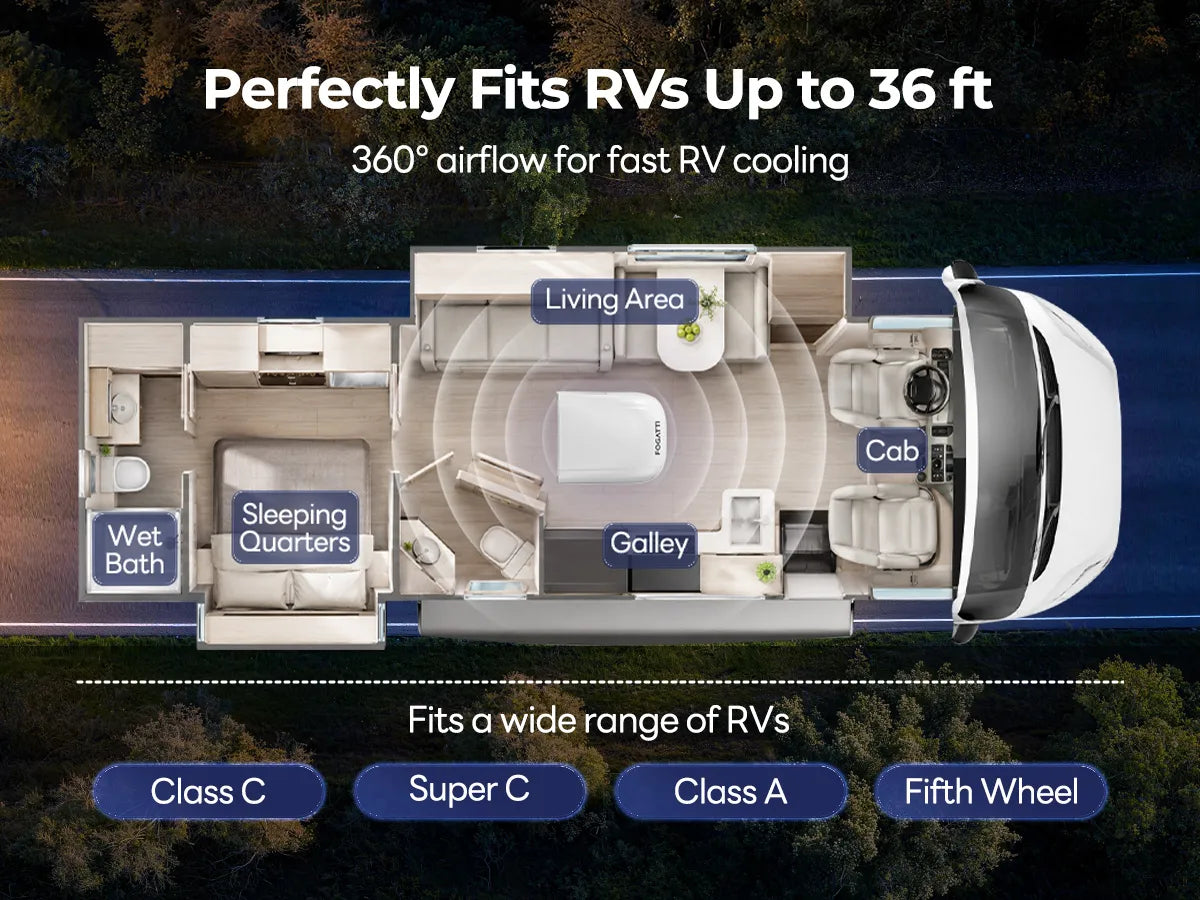

The system is intended for medium-to-large RVs and remains useful in demanding outdoor temperatures up to 115°F.
16K HEAT-PUMP HEATING
Use heat-pump warmth on cool days
The heat pump is useful down to approximately 28°F, while freezing conditions may still require a properly sized furnace.

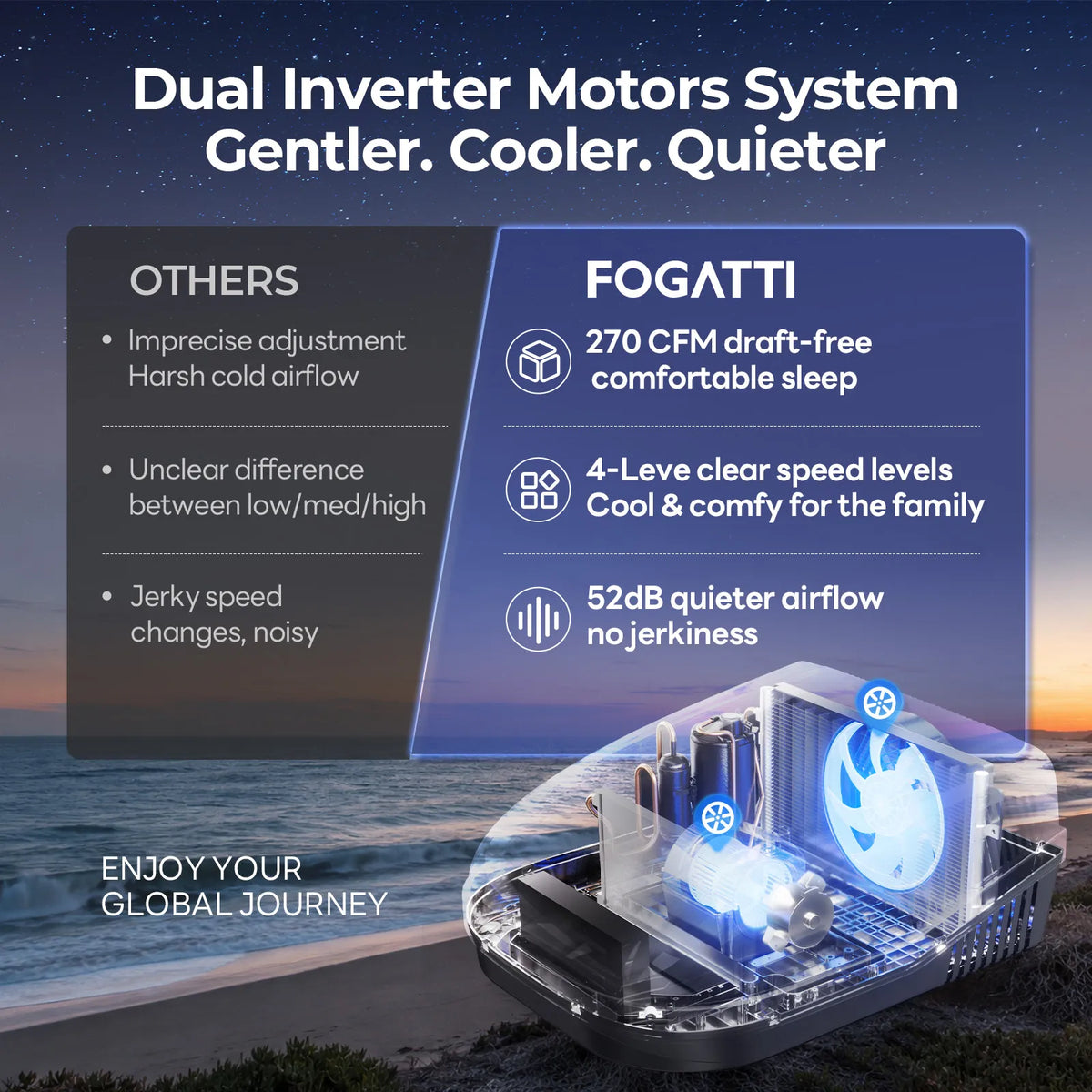

VARIABLE-SPEED AIRFLOW
Balance recovery with four fan speeds
Dual variable-speed motors adjust airflow instead of forcing the system to run at one fixed pace.

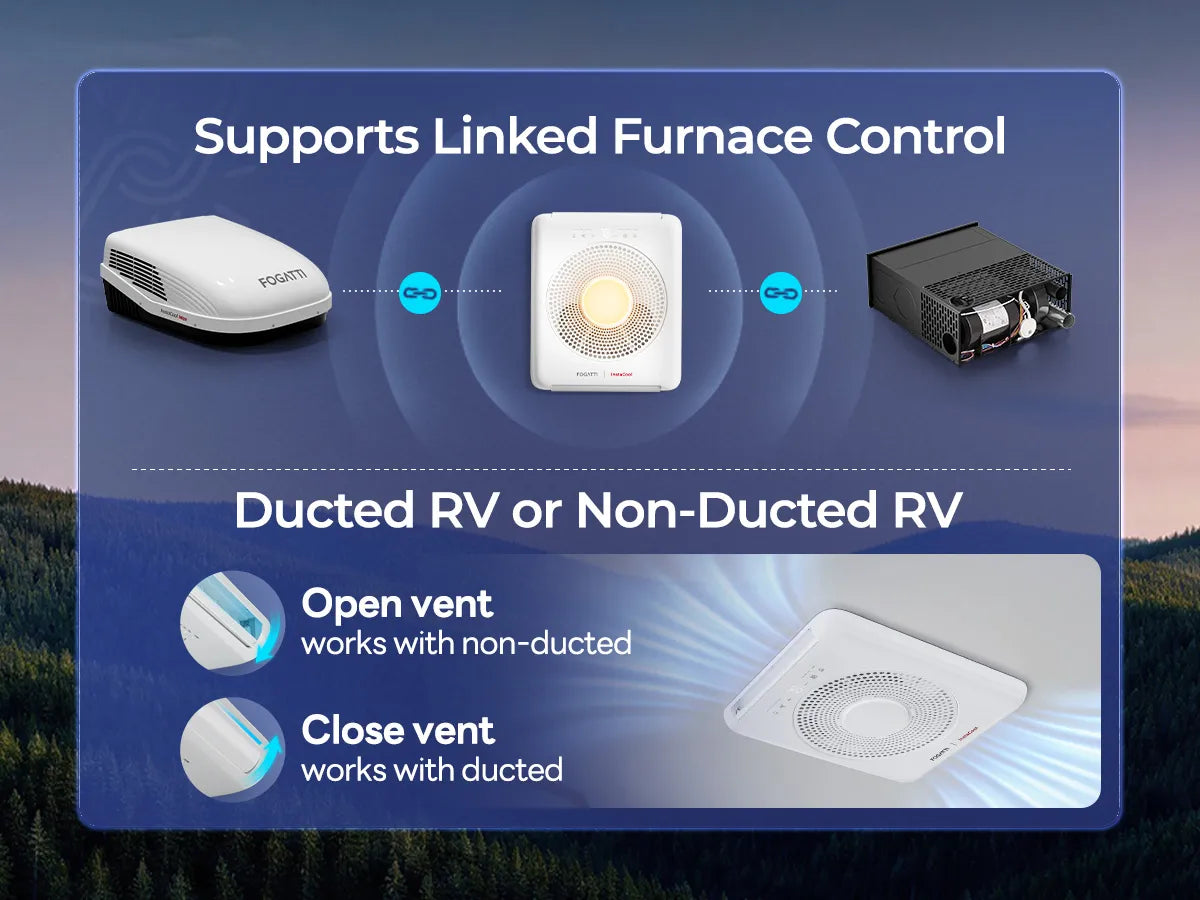

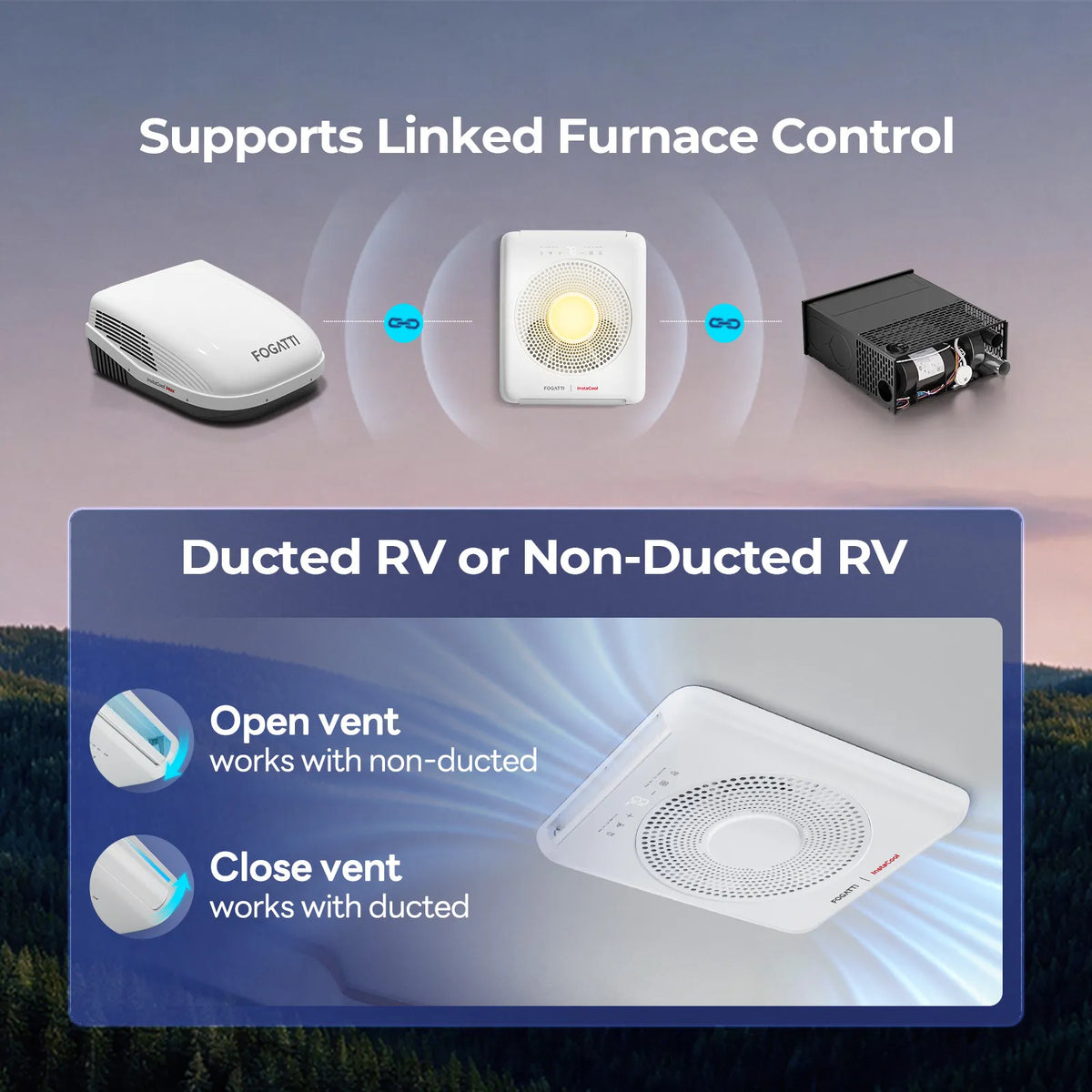

INSTALLATION FLEXIBILITY
Choose ducted or non-ducted airflow
The same rooftop output can be matched to the ceiling layout already used in the RV.
WHO SHOULD CHOOSE PRO MAX?
Choose Pro Max for changing-weather travel
Pro Max earns its place when both high cooling and meaningful rooftop heating will actually be used.
A strong fit for larger RVs in hot climates
The 18K cooling platform provides more recovery capacity than Ultra.
Useful for shoulder seasons and colder mornings
The 16K heat pump adds much more rooftop heating than a small PTC heater.
Choose Ultra when quiet non-ducted operation matters more
Ultra has lower output but a below-43-dB low mode and a smaller all-season positioning.
Match the ceiling kit and roof space
Pro Max supports ducted or non-ducted installations with the matching ceiling kit.

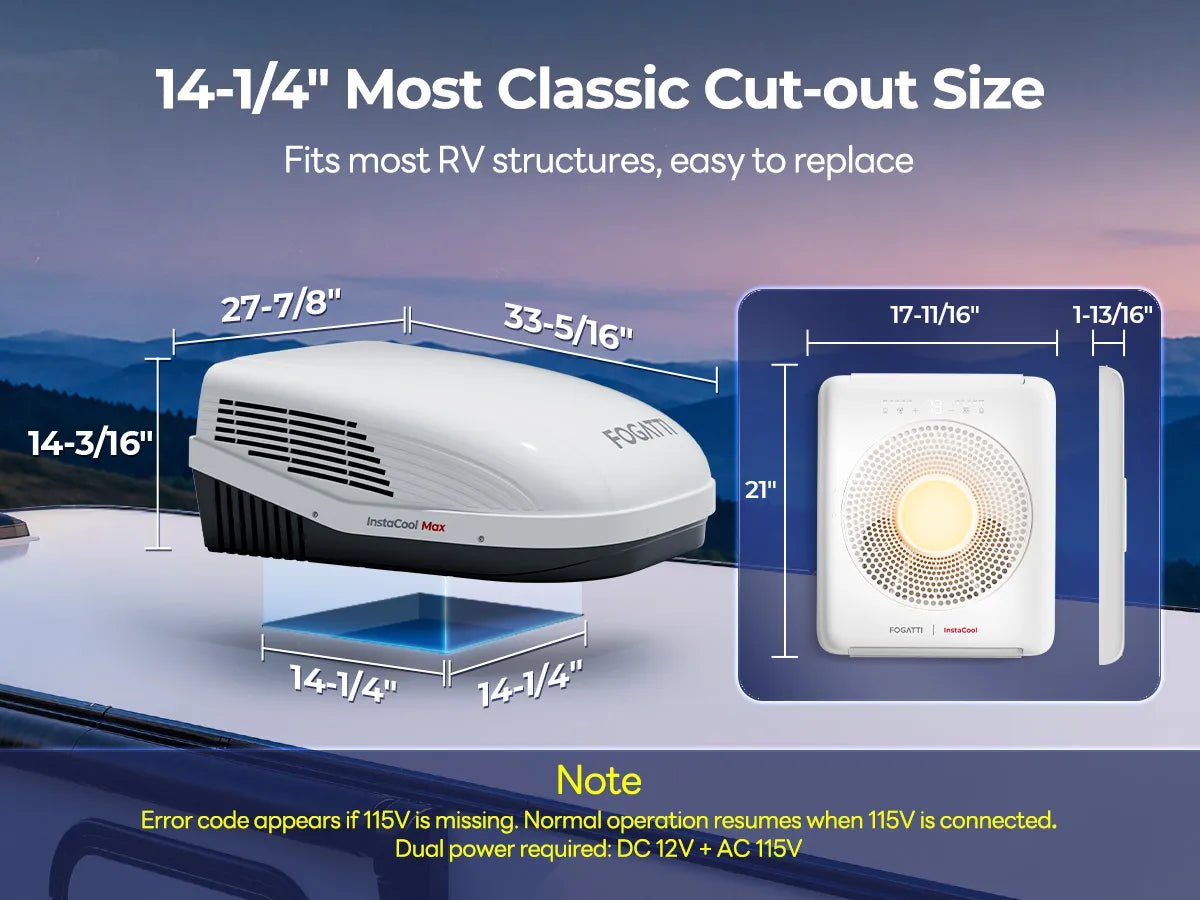

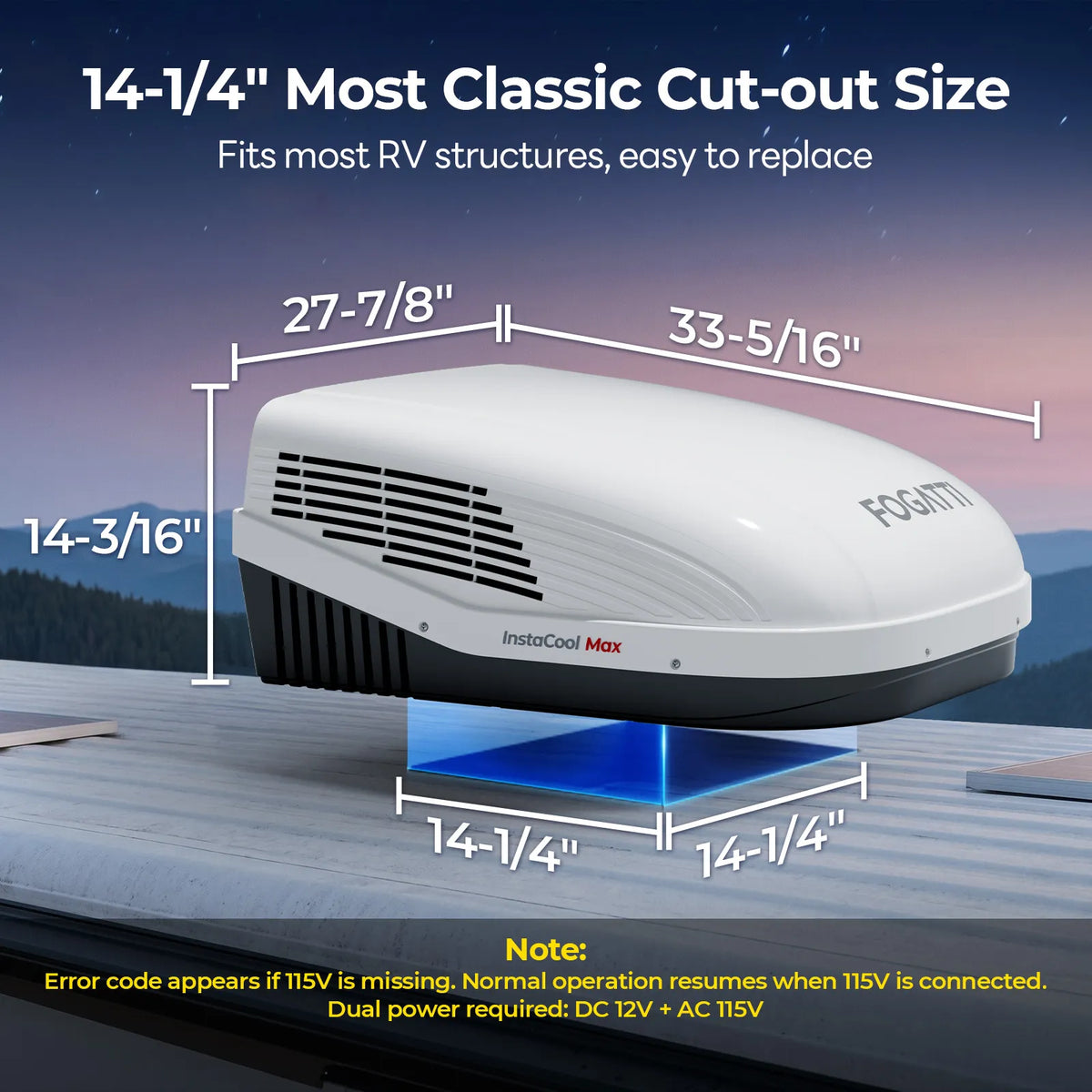

FIT AT A GLANCE
Flexible fit for ducted or non-ducted RVs.
The 14.25-inch opening, 115V supply and selectable ceiling kit support straightforward rooftop replacement planning.
- Roof opening
- 14.25 × 14.25 in
- Rooftop size
- 33.3 × 27.9 × 14.2 in
- Power supply
- 115V AC / 12V DC / 60Hz
- Rated current
- 13A
- Ceiling layout
- Ducted or non-ducted
The heat pump adds warmth down to approximately 28°F; the RV furnace remains the cold-weather partner, and the selected ceiling kit completes the installation.
Choose by heat, sound and output
Pro Max combines the widest ceiling compatibility with 18K cooling and 16K heat-pump warmth.

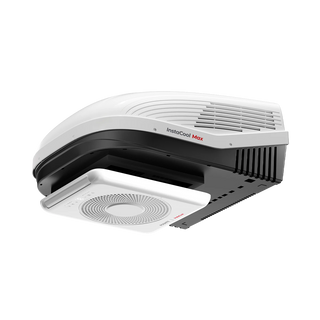

InstaCool Pro Max
For larger rigs needing 18K cooling, 16K heat and flexible ceiling installation.
- Cooling
- 18K BTU
- Heating
- 16K heat pump
- Ceiling
- Ducted / non-ducted
InstaCool Ultra
For quiet nights and useful mild-weather heat in a non-ducted RV.
- Cooling
- 16K BTU
- Heating
- 12.5K heat pump
- Low mode
- Below 43 dB

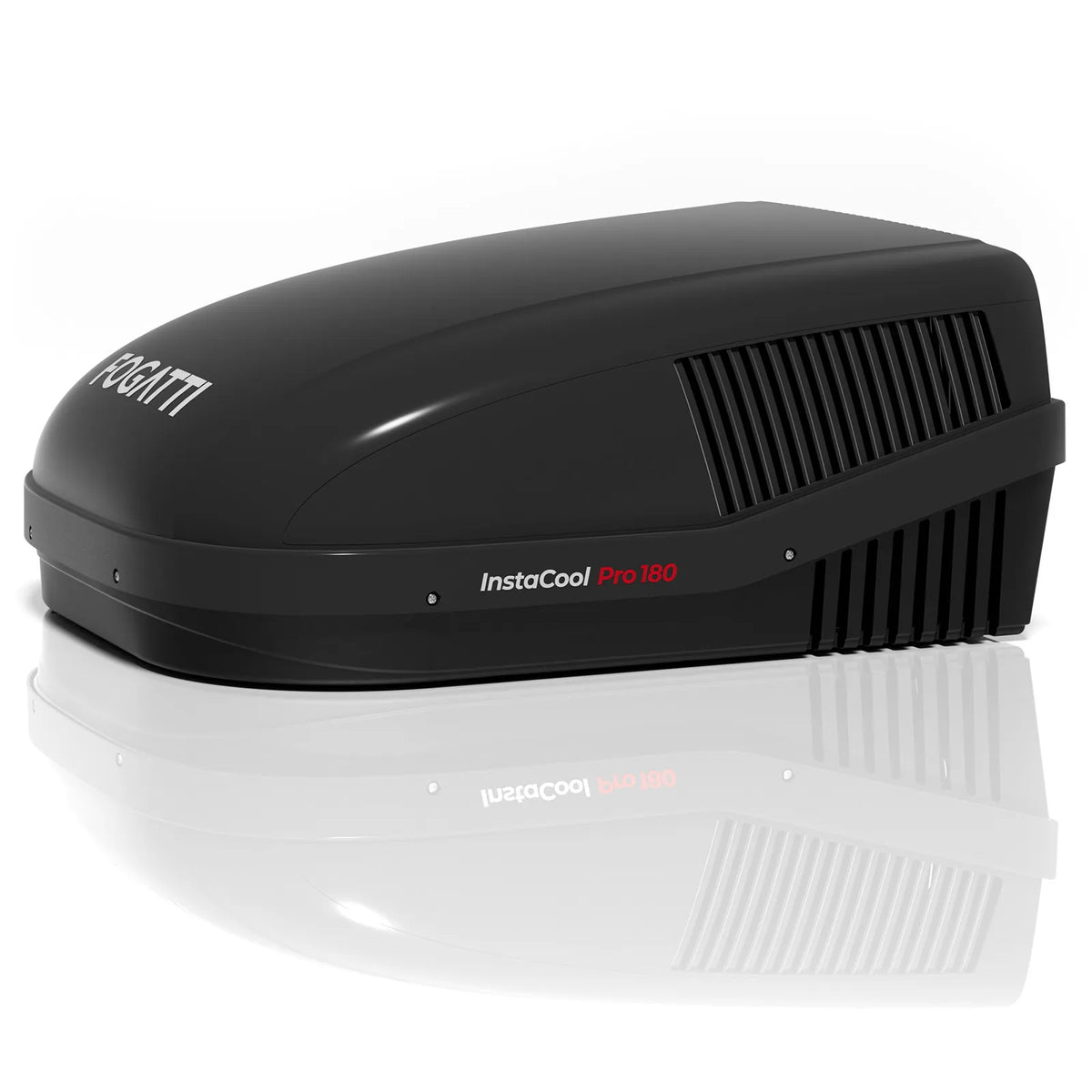

InstaCool Pro 18K
For maximum summer cooling when the furnace already handles winter.
- Cooling
- 18K BTU
- Heating
- None
- Ceiling
- Ducted / non-ducted
See Pro Max performance and installation
Watch Pro Max cooling, installation and power planning in action.
▶18K COOLING TEST
See how an 18K rooftop system is tested
A detailed look at measured cooling behavior and operating performance.
▶ROOFTOP INSTALLATION
See what a replacement installation involves
Roof preparation, lifting, sealing, ceiling work and startup checks.
▶POWER PLANNING
Understand inverter and battery requirements
Startup load, continuous draw and cooling away from full hookups.
