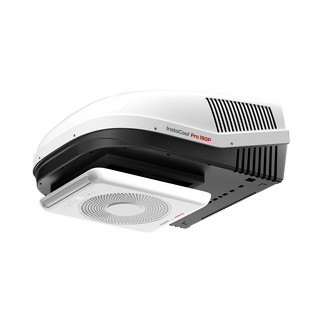

fogatti instacool pro 180p

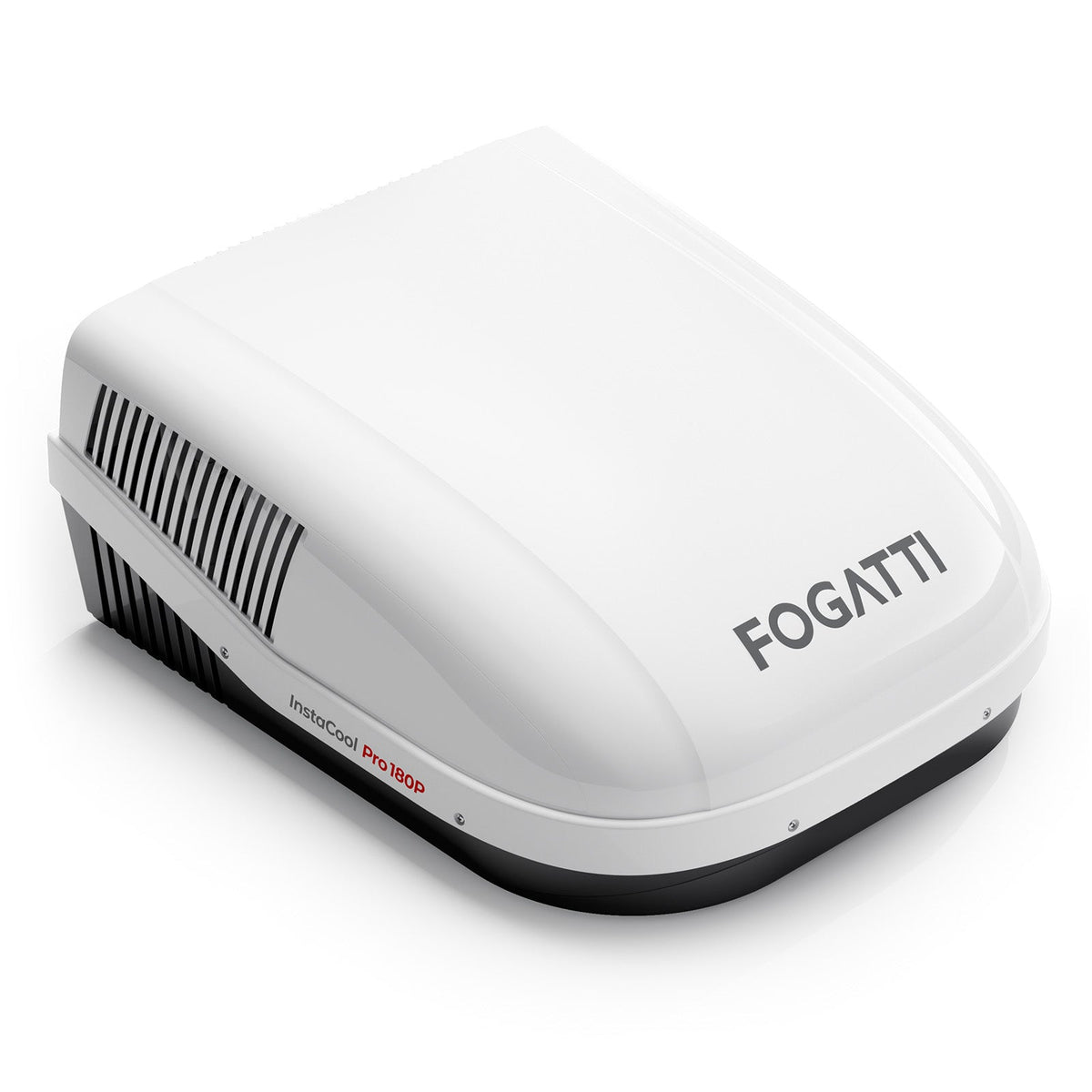

[PRE ORDER]Fogatti InstaCool Pro 18,000 BTU RV Rooftop Air Conditioner with PTC Heating | Heat & Cool 18 photos and videos

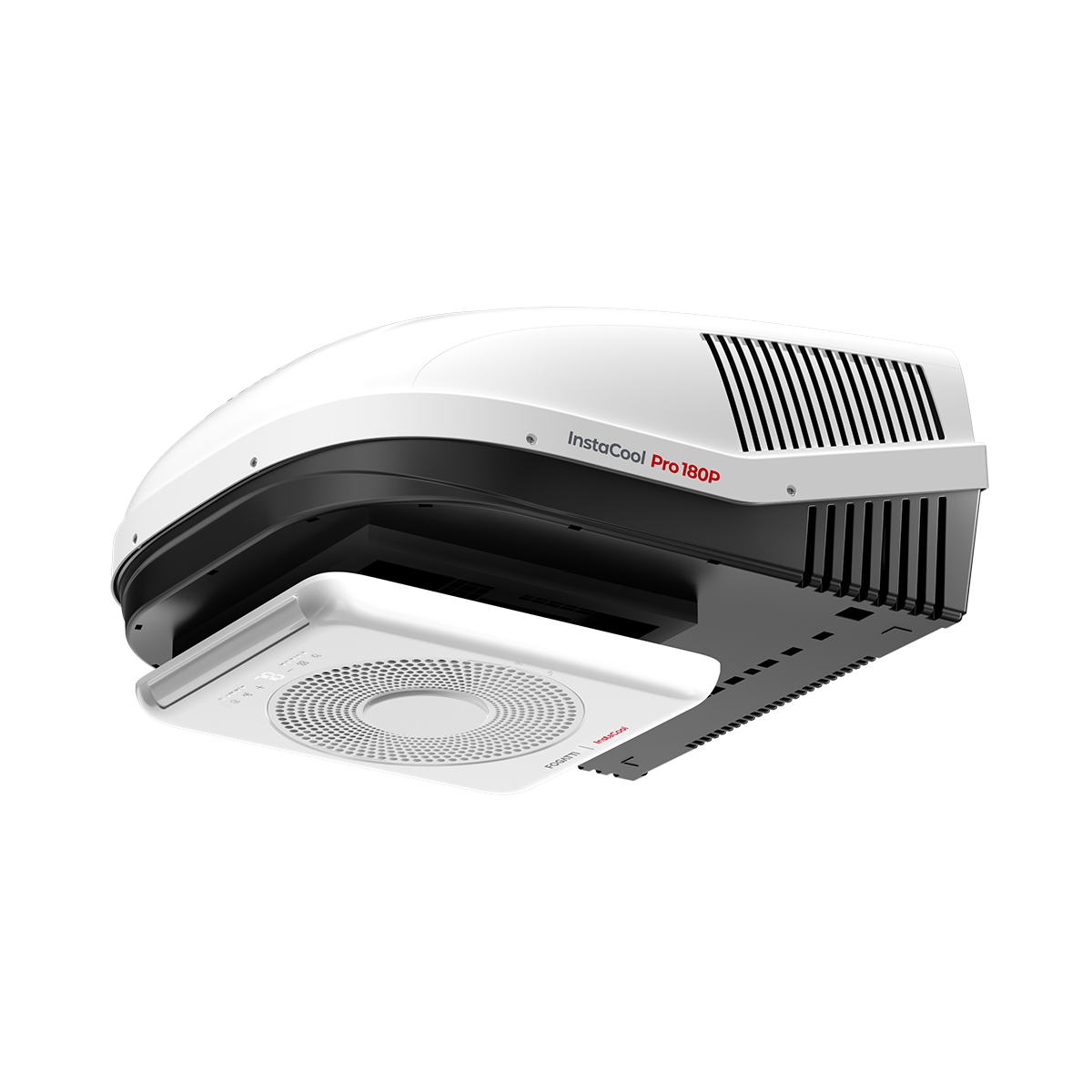

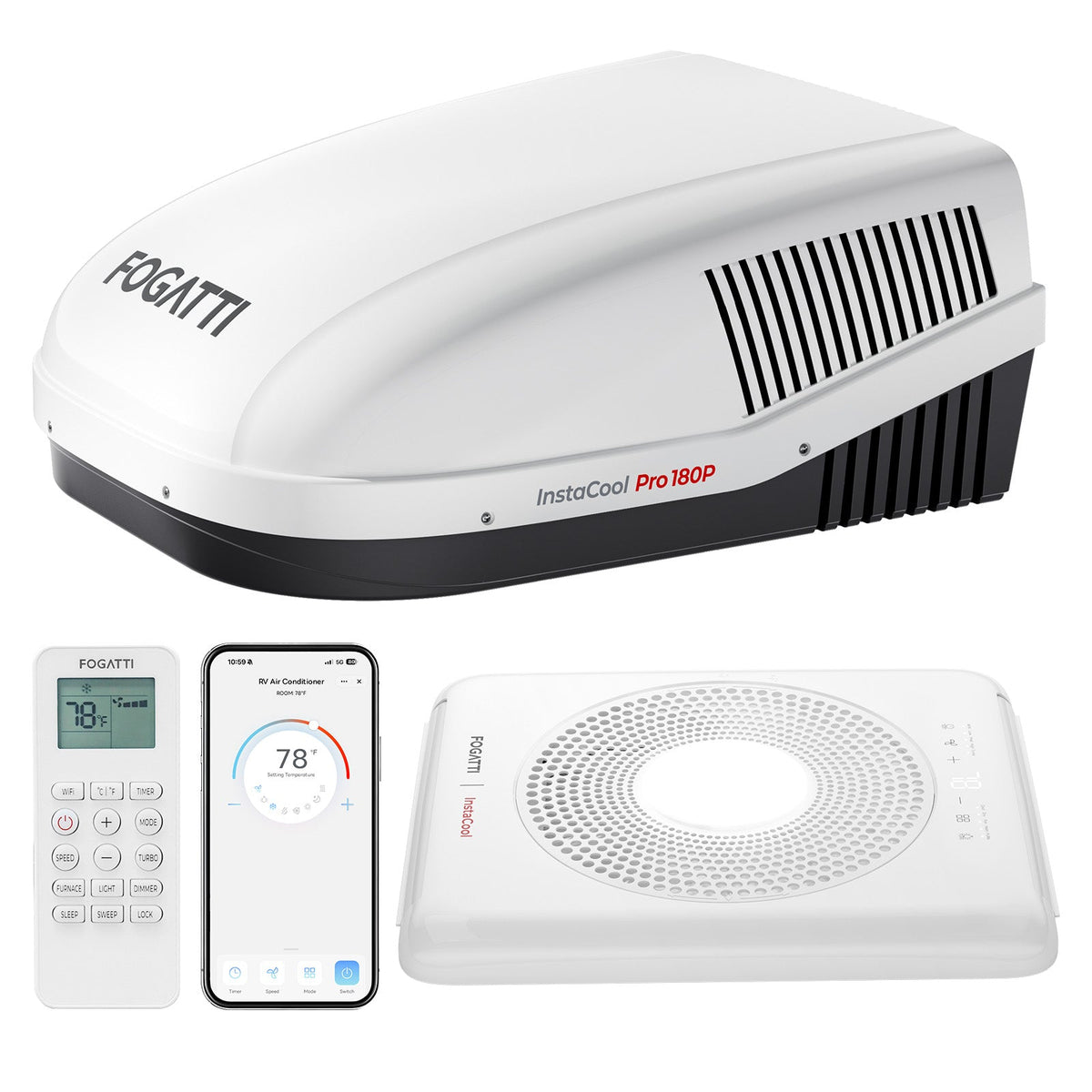

InstaCool Pro 18K PTC

[Pre Order] RV air conditioner with PTC heat

5.0 5 reviews
$1,399.99 $1,719.99 Save (%)
High-output cooling with quick electric warm-up.

InstaCool Pro PTC combines 18,000 BTU cooling with 5,120 BTU electric heat for cool mornings and shoulder-season travel. It supports ducted or non-ducted ceiling layouts with app, voice, remote and ADB control.

View all features ↓
18,000 BTUHigh-output summer cooling
5,120 BTUFast PTC electric warm-up
4 fan speeds271–374 CFM indoor airflow
Ducted / non-ductedChoose the ceiling layout that fits your RV

Best for strong summer cooling plus short bursts of supplemental electric warmth on cool mornings; PTC heat is not a replacement for an RV furnace in freezing conditions.

BFCM Price Protected
Black Friday & Cyber Monday price protection

Shop early with confidence. If the same item is offered for less on fogatti.com during our Black Friday & Cyber Monday event, contact us to request an eligible price adjustment. Terms and exclusions apply.

View price-protection terms

Will it fit your RV?

How to choose
Choose the heating path that fits your travel season

PTC provides quick supplemental electric warmth. A heat pump is the more efficient path for regular mild-weather heating, while cooling-only suits owners who already rely on a separate furnace.

Check these first
  • Verify power supply and ducted or non-ducted installation.
  • Choose cooling-only, PTC assist or heat-pump capability for the trips you take.
Why choose each option
  • UltraQuiet non-ducted nights and efficient mild-weather heat matter.
  • Pro 18K PTCYou want strong summer cooling plus quick supplemental warmth on cool mornings.
  • Pro MaxA larger rig needs stronger heat-pump output and ducted or non-ducted installation flexibility.
Roof opening
14.25 × 14.25 in
Ceiling layout
Ducted or non-ducted
Power supply
115V AC / 12V DC / 60Hz
PDF GUIDE Installation manual Open manual
View fit details

Installation manual — Roof opening, ADB configuration, wiring, mounting and heat-strip requirements.

See the 18K platform installed — Roof preparation, ceiling assembly, wiring, sealing and startup.

INSTALLATION FIT
Roof space, ceiling layout and PTC load

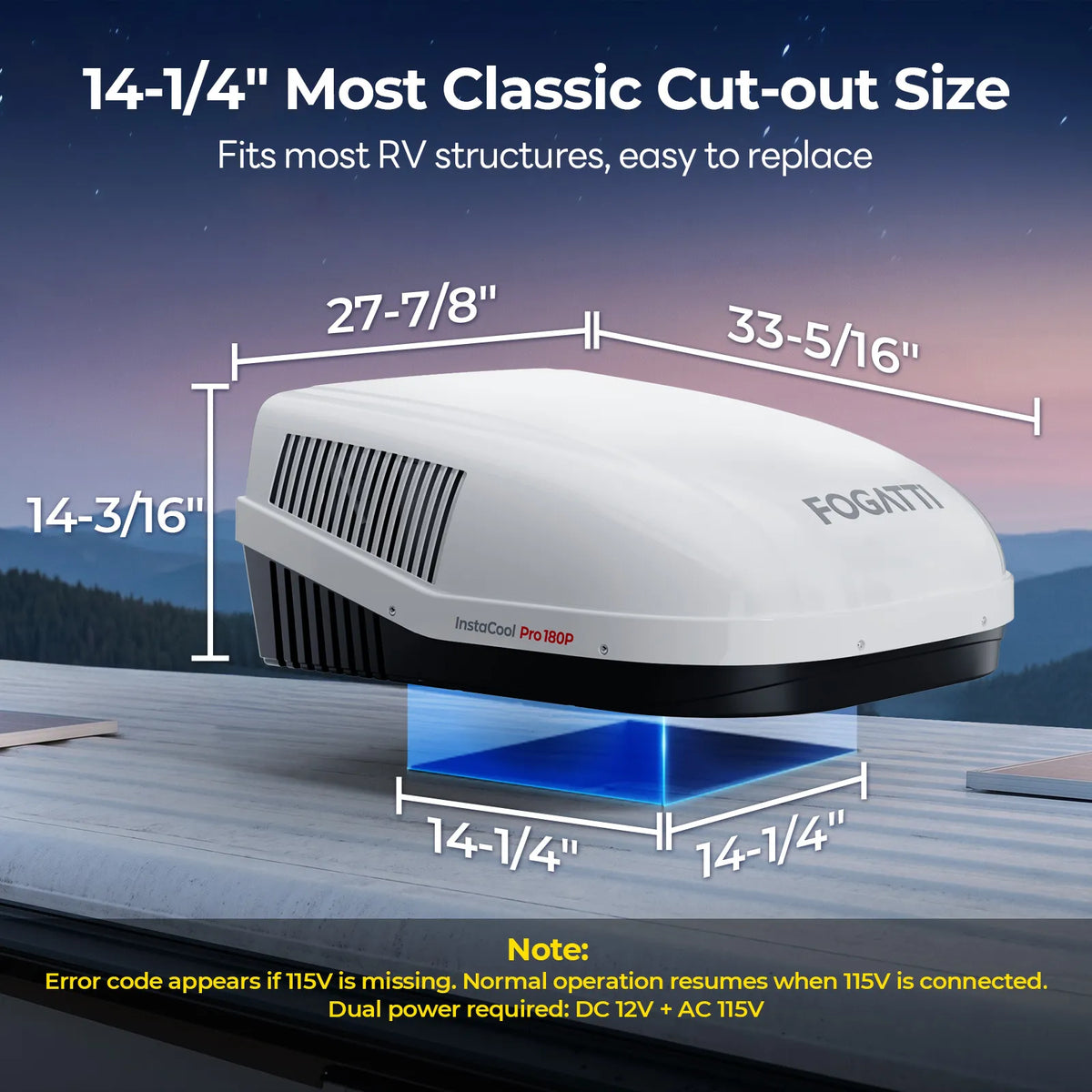

33.3 × 27.9 in roof space · Ducted or non-ducted ceiling · 115V AC / 12V DC / 60Hz

Main Unit Size
33.3 × 27.9 × 14.2 in
Cooling / heating input
1,550W / 1,800W
Main Unit Weight
73 lbs / 33.1 kg
ADB Size
21.1 × 17.7 × 1.8 in
ADB Weight
9.6 lbs / 4.4 kg

Select the matching ceiling assembly. The installation guide shows the 115V circuit requirements for 1,550W cooling and the 1,800W heat-strip load.

Choose your configuration

Type: Non-Ducted (PRE ORDER - Arrives Oct 19.)

Ceiling assembly For the selected ducted or non-ducted variant

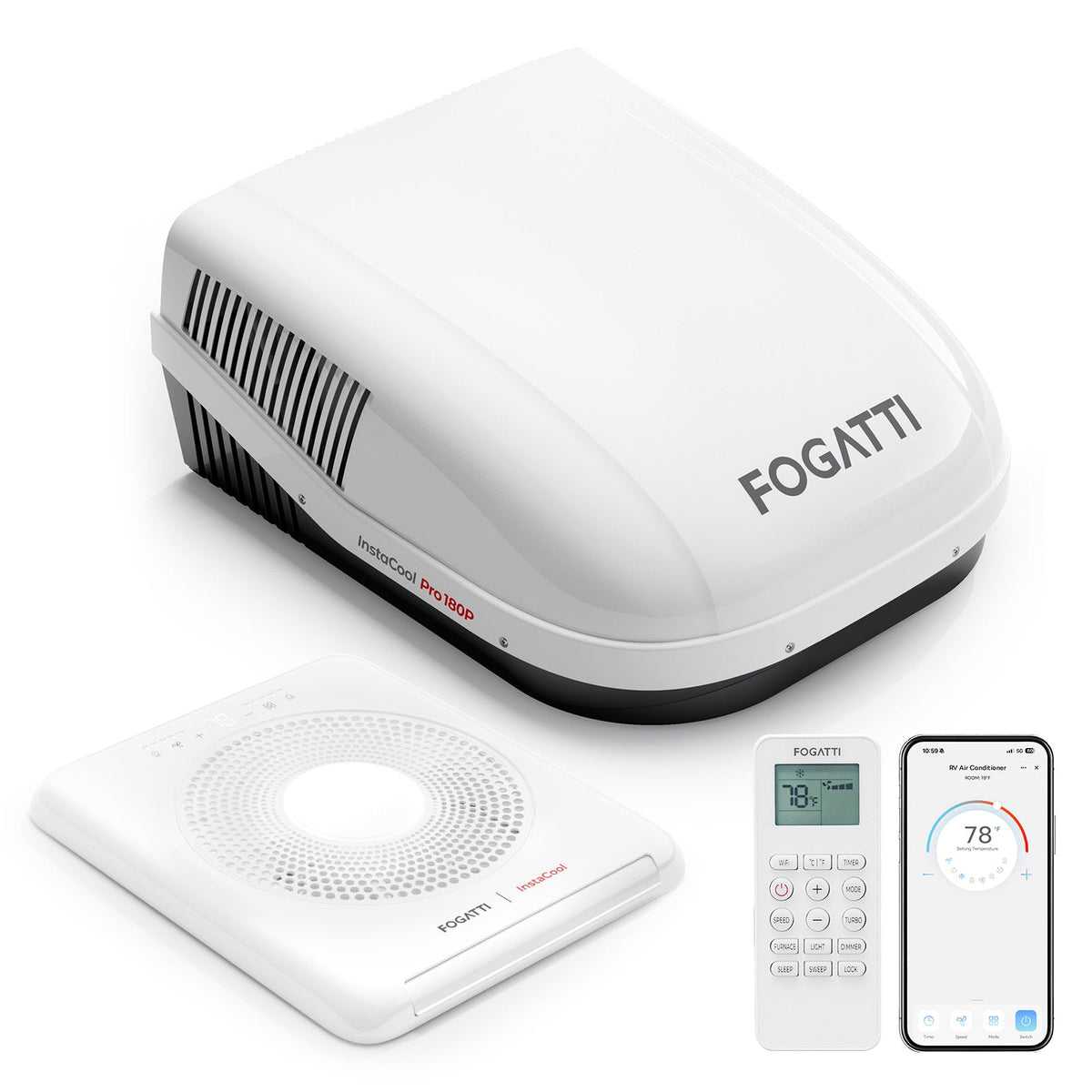

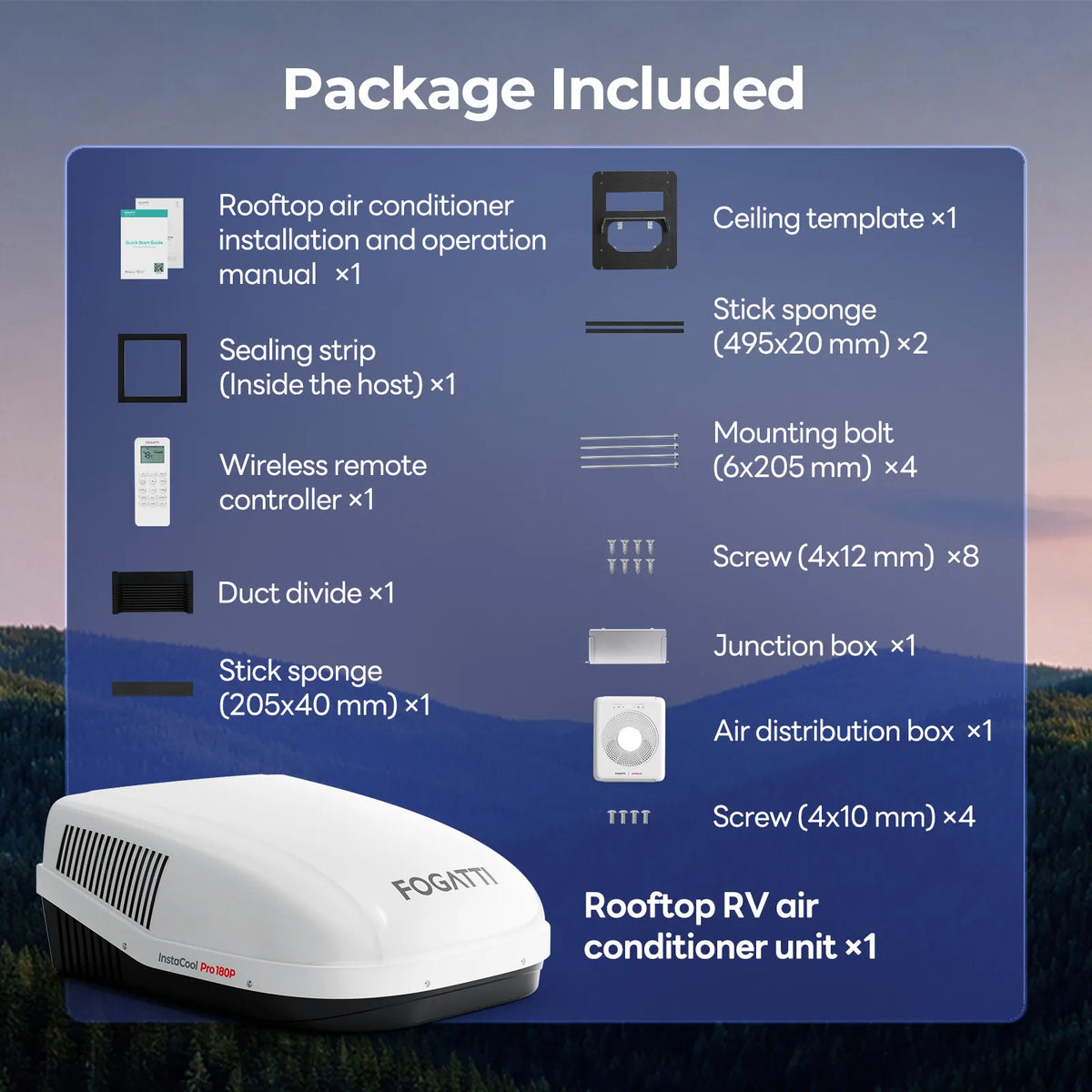

What’s included
  • ✓Rooftop unitInstaCool Pro PTC cooling and heat-strip system
  • ✓Ceiling assemblyFor the selected ducted or non-ducted variant
  • ✓ControlsWireless remote and compatible smart controls
  • ✓Installation hardwareTemplate, junction box, sealing strips and mounting parts
  • ✓Product documentationInstallation and operation manual

Package contents vary with the selected ceiling configuration.

Ready to order

In stock
Secure checkout More options available at checkout

Ships in 3–5 business days

BACKED BY FOGATTI Official WarrantyAutomatically activated with your direct order.2-year warranty · Original parts included Reference valueReference value $60.00$0.00 Included No forms · Latest-batch priority Details
Original parts included

Your appliance, its original components and all original accessories included with your purchase are covered against defects in materials and workmanship.

2-year warranty

No separate registration required

Your direct order is your proof of purchase. Use your order number for warranty support—no registration form needed.

Priority for the latest available production

Direct orders receive priority for the newest available production batches for the selected model, color and fulfillment location. Product refinements may vary by batch; new features are not guaranteed.

Free contiguous U.S./Canada shipping30-day returns

Coverage period, exclusions, labor and shipping terms depend on your model. Review the full warranty terms before purchase.

View warranty terms (opens in a new tab)

Specifications & support

Compare models
Choose your InstaCool
How to choose
Choose the heating path that fits your travel season

PTC provides quick supplemental electric warmth. A heat pump is the more efficient path for regular mild-weather heating, while cooling-only suits owners who already rely on a separate furnace.

Check these first
  • Verify power supply and ducted or non-ducted installation.
  • Choose cooling-only, PTC assist or heat-pump capability for the trips you take.
Why choose each option
  • UltraQuiet non-ducted nights and efficient mild-weather heat matter.
  • Pro 18K PTCYou want strong summer cooling plus quick supplemental warmth on cool mornings.
  • Pro MaxA larger rig needs stronger heat-pump output and ducted or non-ducted installation flexibility.
Ultra
Ultra 16K cool · 12.5K heat pump Choose Ultra whenQuiet non-ducted nights and efficient mild-weather heat matter. CURRENT MODEL
Pro 18K PTC
Pro 18K PTC 18K cool · PTC heat Choose PTC whenYou want strong summer cooling plus quick supplemental warmth on cool mornings.
Pro Max
Pro Max 18K cool · 16K heat pump Choose Pro Max whenA larger rig needs stronger heat-pump output and ducted or non-ducted installation flexibility.
Specifications
Cooling capacity
18,000 BTU
PTC heating capacity
5,120 BTU
Cooling / heating range
63–122°F / -4–86°F
Fan speeds
4
Indoor airflow
271–374 CFM
Cooling / heating input
1,550W / 1,800W
Refrigerant
R32
Quick answers

Does PTC heat replace a propane furnace?
PTC heat provides quick warm-up in cool weather; keep a properly sized furnace for freezing conditions.

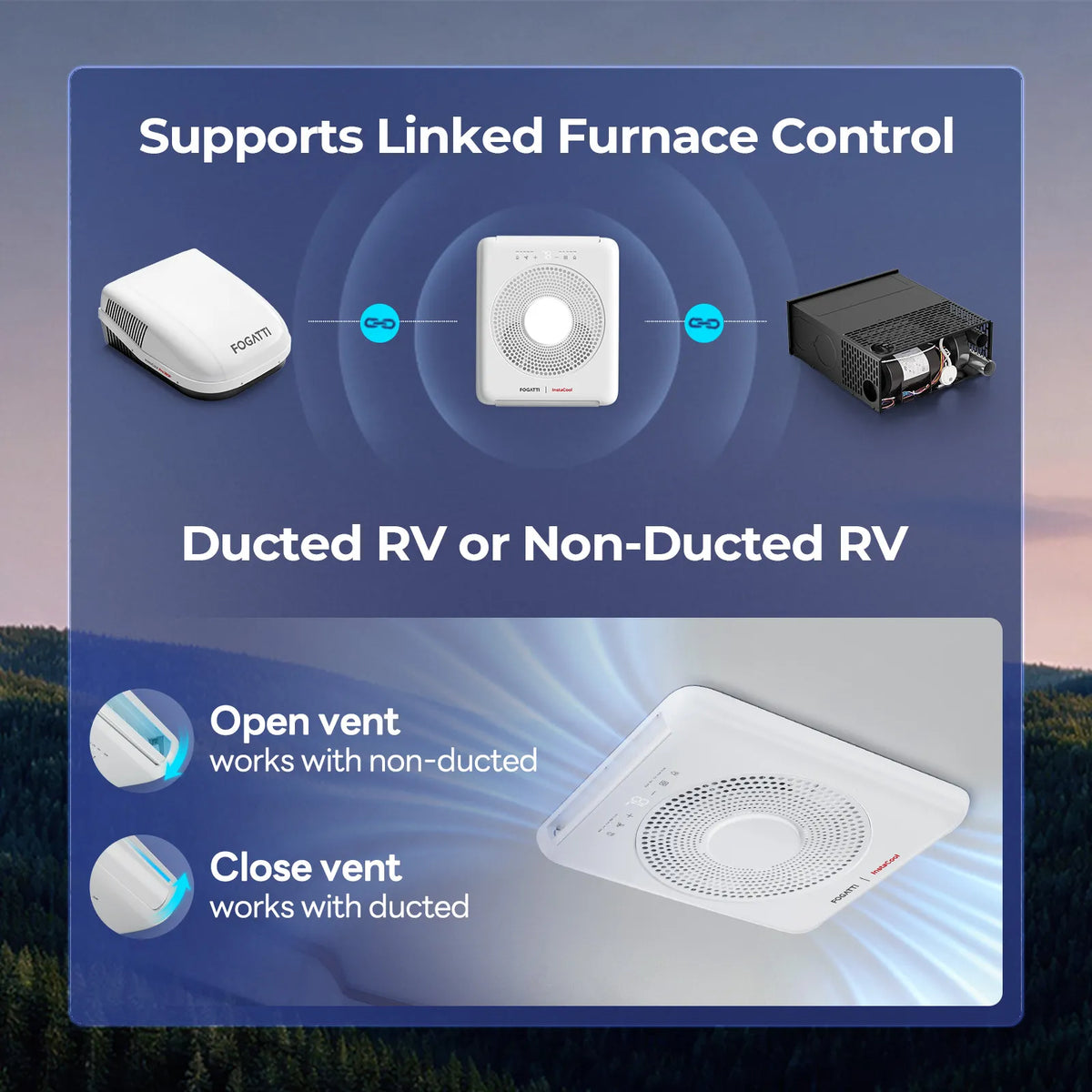

Can I use it with an existing duct system?
Yes, when the ducted variant is selected and the RV duct layout is compatible.

What electrical load does the system use?
Cooling uses 1,550W input and the PTC heat strip uses 1,800W input on the specified 115V circuit.

Read all FAQs ↓

Complete the RV comfort system

Add hot water or propane heat selected for the RV opening, utilities and duct system.

STEP-BY-STEP VIDEO See the 18K platform installed
18K COOLING + PTC WARMTH

High summer output with quick electric heat

This model keeps the 18K cooling platform and adds a small heat strip for mild conditions.

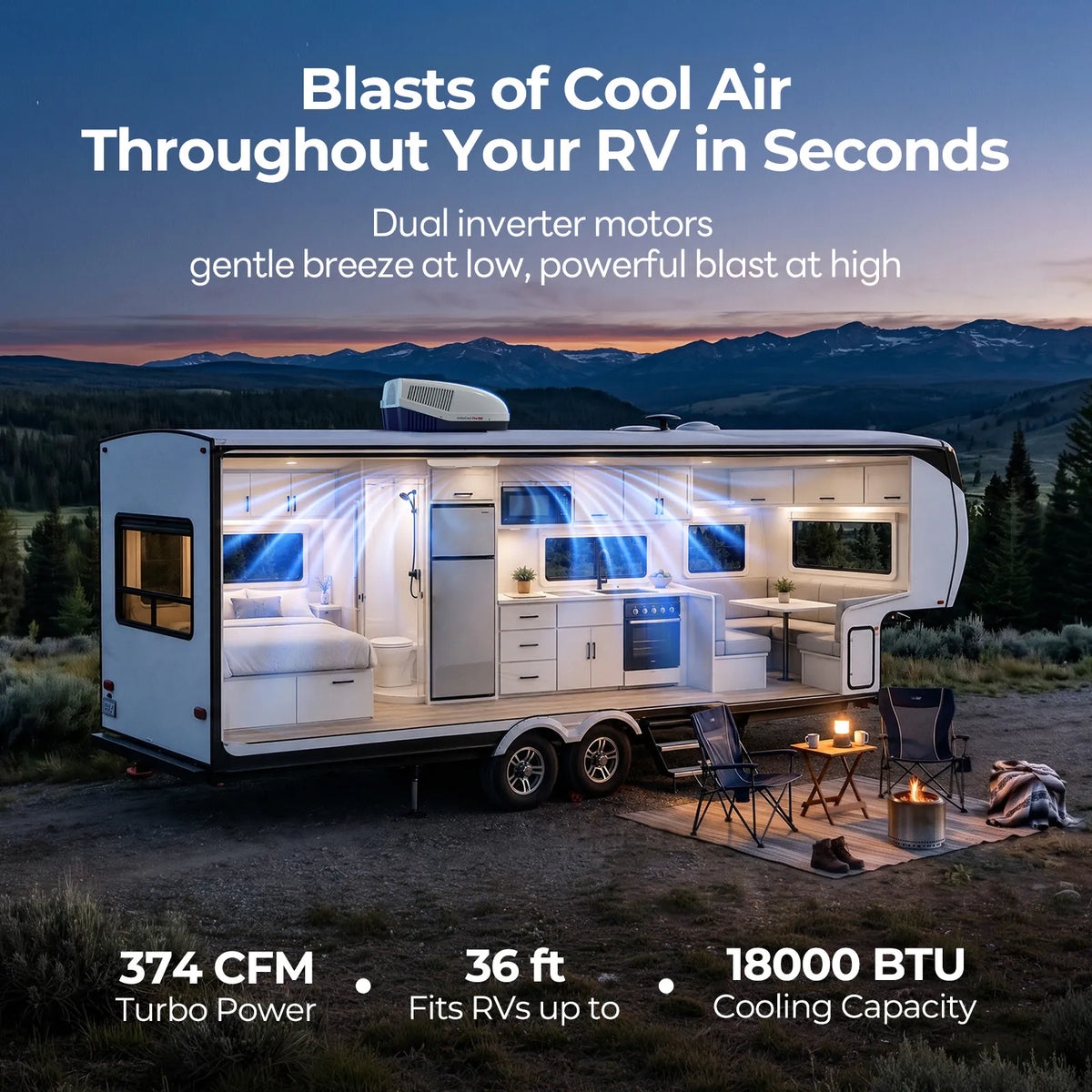

Recover larger cabins in summer heat
18K COOLING

Recover larger cabins in summer heat

Higher output helps after long sun exposure when the entire RV interior has stored heat.

Warm the cabin on cool mornings
5.1K PTC HEAT

Warm the cabin on cool mornings

Supplemental electric heat is useful for short shoulder-season temperature drops.

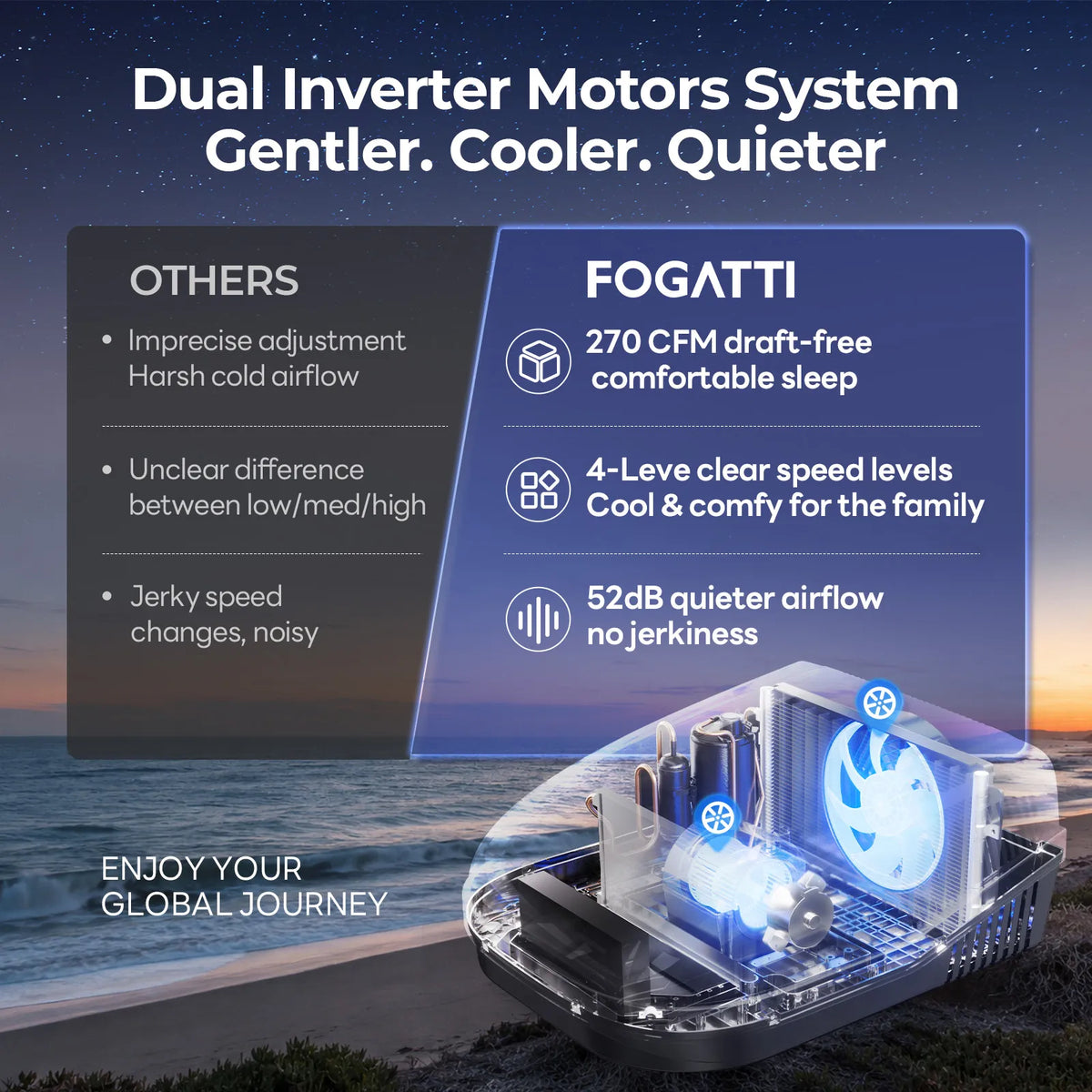

Cool hard, then reduce airflow
FOUR FAN SPEEDS

Cool hard, then reduce airflow

Adjust airflow after the cabin reaches a steadier temperature.

PTC OR HEAT PUMP?

Choose PTC for brief, mild warmth

PTC adds convenience, while a heat pump or furnace handles more sustained heating demand.

1
Hot summers remain the priority

The product is still primarily an 18K cooling system.

2
You camp with shore power

The 1,800W heat strip uses the 115V circuit for mild warmth.

3
You retain a furnace for winter

Pair this rooftop PTC system with the RV furnace for freezing-weather heat.

INSTALLATION FIT

Ceiling-kit and electrical-load compatibility

Select ducted or non-ducted with the listed roof space and heating load.

Ceiling-kit and electrical-load compatibility
FIT AT A GLANCE

Check roof clearance and 1,800W heat

The standard opening pairs with the listed rooftop space and circuit capacity.

Cooling
18,000 BTU/h
PTC heat
5,120 BTU/h
Opening
14.25 × 14.25 in
Ceiling
Ducted or non-ducted
Cooling input
1,550W
Heating input
1,800W

The propane furnace remains the freezing-weather partner, and the selected ADB completes the ceiling installation.

CHOOSE THE RIGHT MODEL

Choose around heating demand and sound

All three models cool well; the meaningful difference is how you heat and how the ceiling is built.

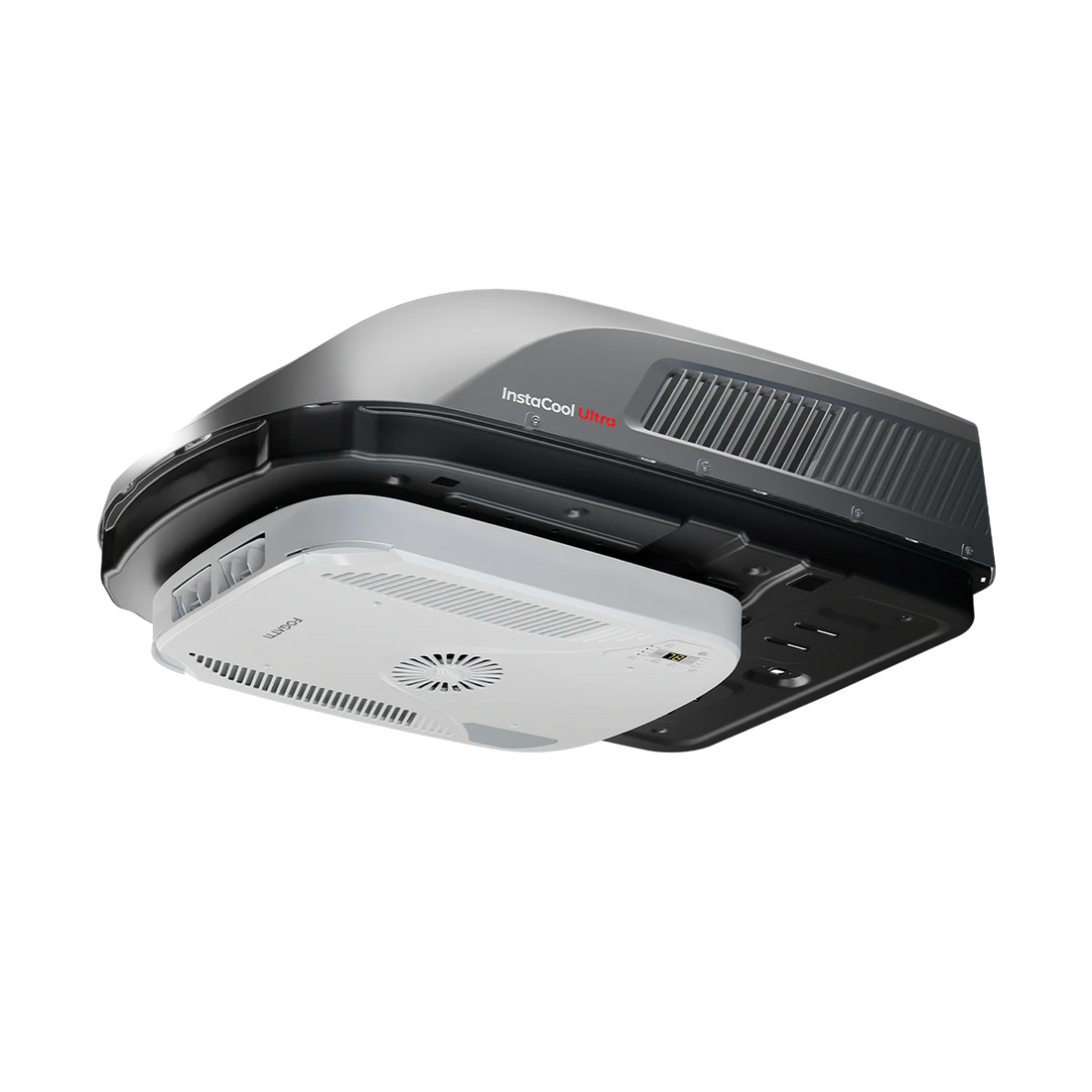

InstaCool Ultra

InstaCool Ultra

Quiet non-ducted comfort with a 12.5K heat pump.

Cooling
16K BTU
Heating
12.5K BTU
Low mode
<43 dB
QUICK ELECTRIC HEAT

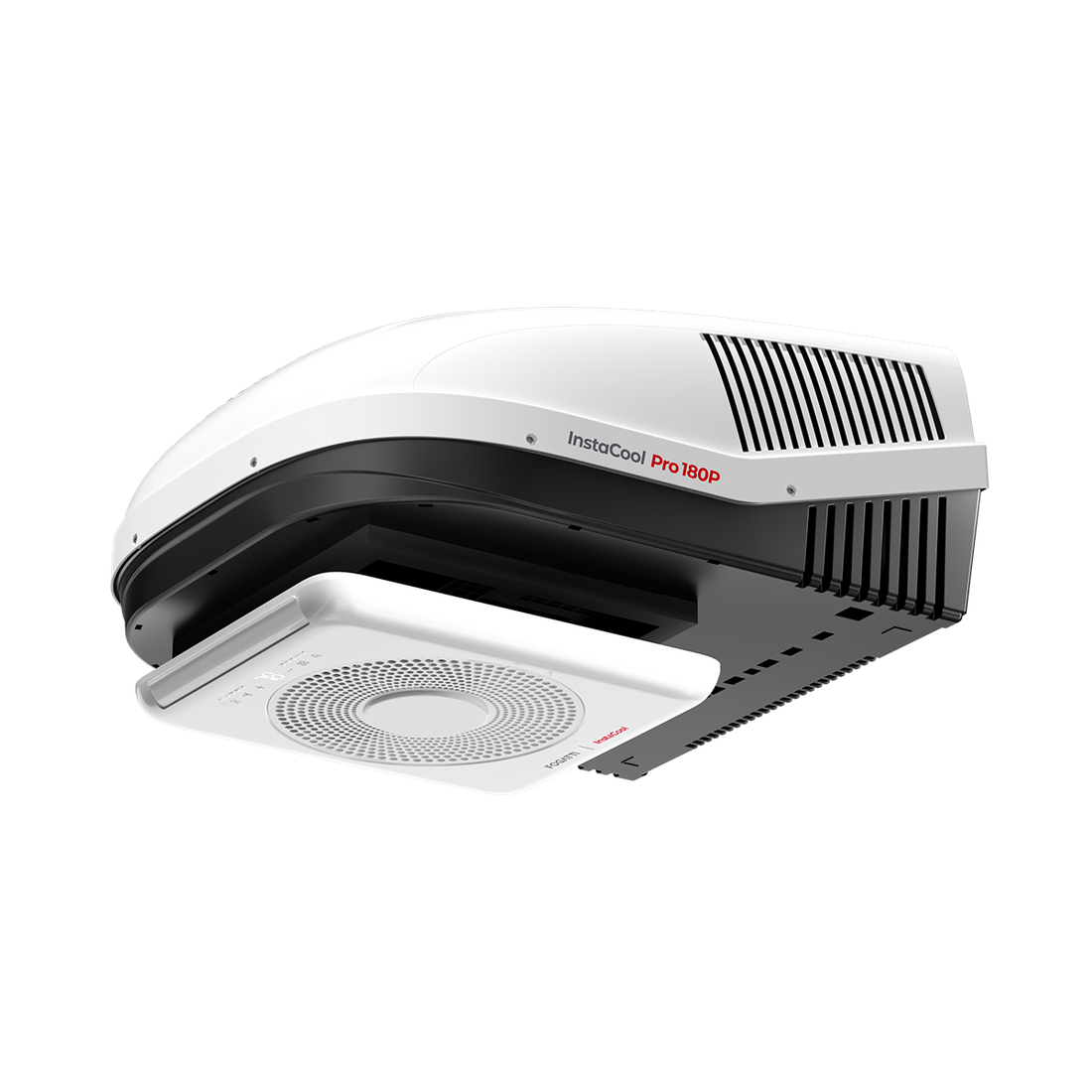

InstaCool Pro PTC

InstaCool Pro PTC

18K cooling plus mild-weather heat-strip warmth.

Cooling
18K BTU
PTC heat
5.1K BTU
Ceiling
Ducted / non-ducted
$1,399.99 Current model

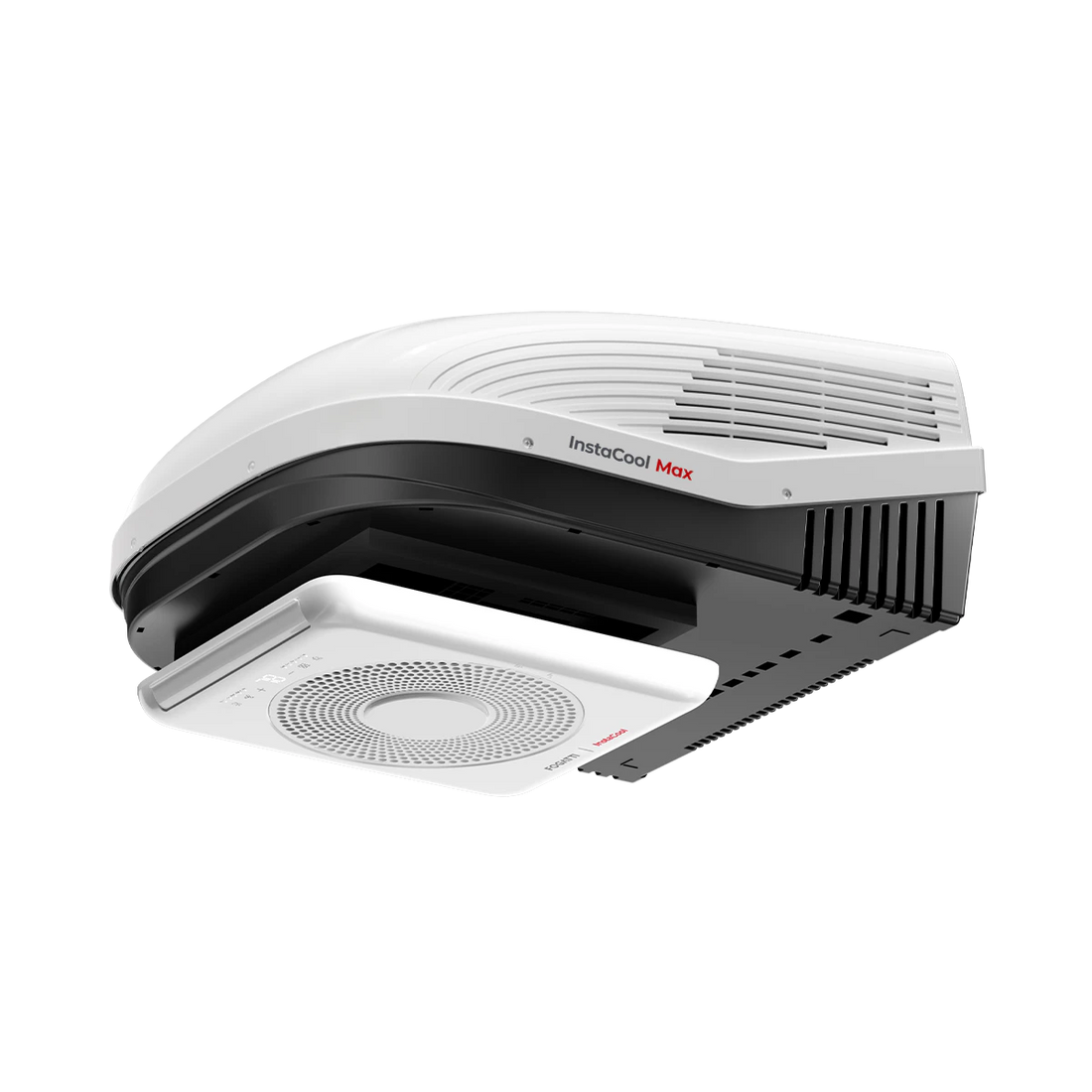

InstaCool Pro Max

InstaCool Pro Max

18K cooling with stronger all-season heat-pump output.

Cooling
18K BTU
Heating
16K BTU
Ceiling
Ducted / non-ducted
